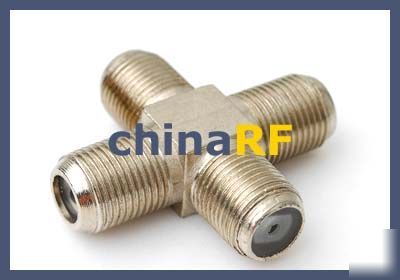

F jack to f 3 jack adapter 4 way #0735
F adapter 4 Jack 4 way RF adapter
F RF connectors are the least expensive, general purpose connectors with non-constant impedance for use at 500 volts or less, and for use with low frequencies to 500Mhz. F type coaxial connectors are widely used in cable TV, MATV,CCTV and related consumer television products. F connectors are available in a limited selection to fit various cable sizes.
Temp.range................-40 +60 centigrade
Vibration.................100m/s2 (10 500Hz)
Frequency Range...........DC 1GHz
Working Voltage...........170V max
Withstand Voltage.........500V rms
Center Contact............ 10m
Outer Contact............. 5m
Insulation resistance .... 1000 m
VSWR Straight............. 1.20
Right angle?.............. 1.30
Durability(mating)........ 500 (cycles)
shell ..............brass ................nickelplated
contact pin ........brass.......gold or silverplated
elastic contact.... beryllium ............gold or silverplated
insulator ..........PTFE or PE
crimping suite..... copper alloy......... nickelplated
