650NM 5MW coil laser assembly 11X22MM 24" length

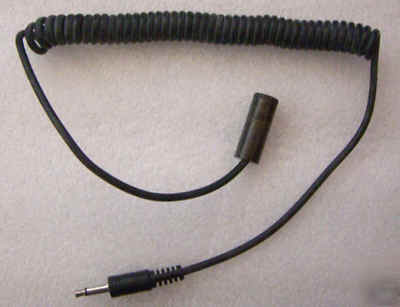

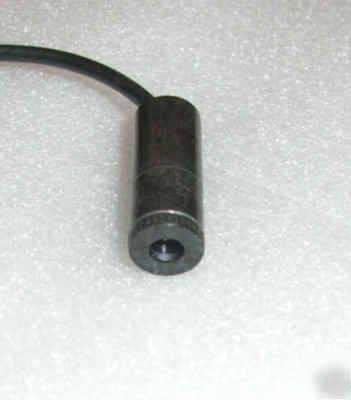

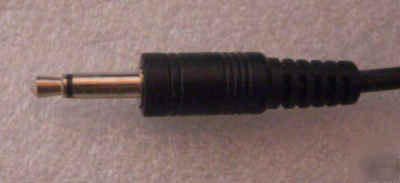

You are purchasing a laser coil assembly. One one end is a 650nm 5mw 11x22mm laser module and the other is a standard 1/8" jack for power connection.
The units run on 3.2VDC at approximately 30mA, the module contains automatic current control drivers. Just add power and go!
Coiled the length is 18", stretched it is about 30".
We originally built these for a sewing machine company and they were used to trace patterns using a small handheld laser.
Spot size is about 1-2mm but pictures are next to impossible to properly take given laser splatter.
