TS10 dish/glass washer wash/rinse tank thermostat 0-86

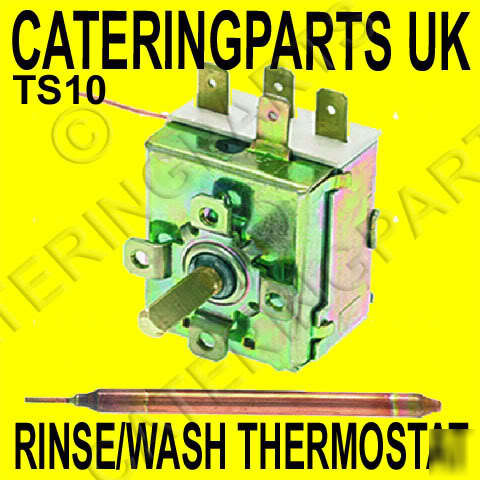

TS10 - DISHWASHER / GLASSWASHER THERMOSTAT 0-86 DEGREES.
PART NUMBER TS10 THERMOSTAT, TYPE TR2 16 AMP, 0-86 DEGREES. Universal part can be fitted to various commercial dishwashers and glasswashers. These thermostats have a capillary length of approx 1500mm, bulb (sensor) is approx 6.5mm thick x 95mm. Rated at 16a and ranging from 0 to 86 degrees these thermostats can be used for wash or rinse control, spade type push fit connections allow for changeover from rinse thermostat to wash thermostat. The sensor on this type of thermostat is usually pushed into a pocket on the rinse tank or wash tank. If you have any questions please do not hesitate to contact us. Various other parts available in our shop for same day collection or next day delivery. If you have any questions please do not hesitate to contact us.
