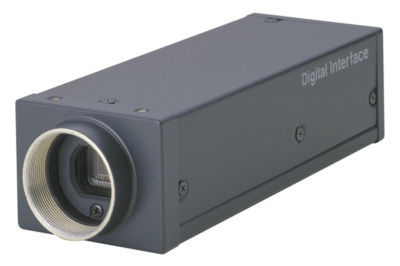

Sony xcd-SX910 monochrome firewire ccd camera
SONY XCD-SX910 MONOCHROME FIREWIRE CCD CAMERA MINT!
SONY XCD-SX910 IEEE 1394 Progressive Scan High Resolution B&W Camera in excellent condition
Offering a dramatic leap forward in frame rates and imaging functions, the new IEEE-1394 XCD-SX910 camera is ideal for quality-critical imaging applications such as semiconductor inspection, machine vision and factory automation. The XCD-SX910 employs a 1/2" Progressive Scan CCD with square pixels and offers excellent sensitivity. This new camera delivers uncompressed, high-resolution, digital black and white images and features an easy-to-use asynchronous electronic shutter function with an exposure range from 1/100,000 to 17.5 second, allowing for the capture of fast moving objects clearly or still images in low light environments.
* High Picture Quality and Pixel Resolution - 1/2" IT Progressive Scan CCD, 1280 x 1024 pixel resolution (SXGA) with a maximum resolution of 1376 x 1024
* IEEE-1394 Digital Serial Bus at 400 Mps - 15 fps at 8-bits / 7.5 fps at 10-bits
* Remote control of all functions
* Binning Function for high frame rates and high sensitivity
* Compact and light weight - easy to install
* Scaleable / Partial Scan - 16 image split (4 x 4) - Less processing/faster frame rates
* Electronic Shutter and External Asynchronous Trigger
* Image Device 1/2 type progressive scan IT CCD
* Effective picture elements 1392 (H) x 1040 (V), 1,450,000 pixels
* Output image size SXGA: 1280 (H) x 960 (V) Max. 1376 (H) x 1024 (V)
* Cell size 4.65 m (H) x 4.65 m (V)
* Minimum Illumination 4 lx, (F0.95 lens open, +18 dB gain)
* Digital Interface IEEE-1394-1995
* Transfer Rate 400/200 Mbps
* Frame Rate 15/7.5/3.75/1.875 fps
* Gain Control Auto/Manual (0 to 18 dB, 0.035 dB steps)
* External Shutter 1/10,000 to 17.5 s
* External Trigger Shutter Trigger start (mode0), trigger start and exposure duration (mode 1)
* Partial Scan 256 zones (16 x 16)
* Power Requirements DC 8 to 30V (from IEEE 1394 cable)
* Dimensions 44 (W) x 33 (H) x 116 (D) / 1-3/4 x 1-15/16 x 4-5/8 inches)
* Operating Temperature -5 to 45 C (23 to 113 F)
* Storage Temperature -30 to +60 C (-22 to 140 F)
* Operating Humidity 20 to 80% (non condensing)
* Storage Humidity 20 to 95% (non condensing)
* Vibration 10 G (20 to 200 Hz)
* Regulations UL60950, FCC Class B Digital Device, CE (EN61326)
