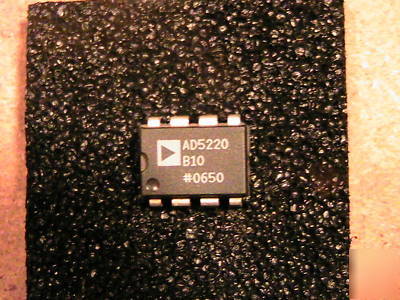

AD5220 10K digital potentiometer
The AD5220 provides a single channel, 128-position digitally controlled variable resistor (VR) device. This device performs the same electronic adjustment function as a potentiometer or variable resistor. These products were optimized for instrument and test equipment push-button applications. A choice between bandwidth or power dissipation is available as a result of the wide selection of end-to-end terminal resistance values.
* Increment/Decrement Count Control
* Mechanical Potentiometer Replacement
* Remote Incremental Adjustment Applications
* Instrumentation: Gain, Offset Adjustment
* Programmable Voltage-to-Current Conversion
* Programmable Filters, Delays, Time Constants
* Power requirements: 2.7 to 5.5 VDC
* Communication: interface analog
* Dimensions: 0.43 x 0.28 x 0.195 in (109 X 71 X 82.5 mm)
* Operating temp range: -40 to + 185 F ( 40 to +85 C)
