Nib b wp-dynamic 65MM water meter with pulsed output

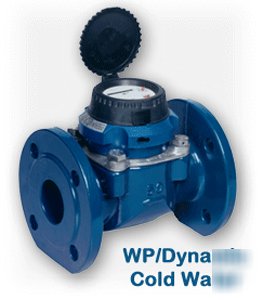

FOR SALE WITH NO RESERVE IS THIS BRAND NEW IN BOX WP-DYNAMIC 65MM COLD WATER METER WHICH INCLUDES FITTED PULSED OUT CONNECTIONS (NOT SHOWN IN PICTURE).
THE METER IS MANUFACTURED BY SENSUS METERING SYSTEMS AND IS AVAILABLE FOR AN UNBELIEVABLE STARING PRICE OF ONLY 199.00.
Bulk liquid meter for measurement of high, relatively constant flows of cold water (<122'F)
Bulk liquid meter for cold water service
Available in sizes ranging from 2" (50mm) to 12" (300mm)
Process Connection: ANSI 150lb RF Flange (Standard) and 300lb RF Flange (Optional)
Measurement accuracy of +/- 2% on flows
Replaceable measuring element can be removed for maintenance and/or replacement without removing the meter housing from the line
With its high degree of accuracy and the versatility of its accessories, Meinecke Flanged Turbine Meters are ideally suited for automatic batching, local or remote totalization or remote rate of flow indication
Hermetically sealed register (IP 68)
Patented hydrodynamically balanced rotor ( DN 300)
Patented symmetrical calibration adjustment ( DN 300)
Register may be rotated through 360
Pattern approved removable measuring element
Powder coating affords max. corrosion protection
Not affected by external magnetic fields
Nominal Diameter DN 40 50 65 80 80 100 125 150 200 250 300 400
n 10 15 25 40 40 60 100 150 250 (***) 600 1000
Dimensions overall length L *) mm 220 200 200 200 225 250 250 300 350 450 500 500
height H mm 120 120 120 150 150 150 160 177 206 231 256 380
h mm 69 73 85 95 95 105 118 135 162 194 226 295
g mm 200 200 200 270 270 270 280 356 441 466 491 785
Weights meterkg 7.4 7.7 10.0 13.6 14.0 18.0 20.5 35.5 50.5 72.3 99.3 187
measuring element kg 1.4 1.4 1.4 3.0 3.0 3.0 3.0 5.5 7.5 7.5 7.5 25
body kg 6.0 6.3 8.6 10.6 11.0 15.0 17.5 30.0 43.0 63.8 91.8 162
UK Postage charges only apply!
