> Digital handheld push-pull force gauge,n/kg/lb,pc,RS232
Digital handheld push-pull force gauge,n/kg/lb,pc,RS232
"NEW PROFESSIONAL DIGITAL HANDHELD PUSH-PULL FORCE GAUGE"
Selectable N/KG/LB Display !!!
PC Software for data download !!!
Compact / Die-cast Rubust Housing Design !!!
High Accuracy / resolution !!!
. Muitiple displays in N/KG/LB, auto unit conversion;
. RS232 Computer interface / Software for data download and analysis;
. Setup the upper / lower limit freely. Indicator light / buzzer send out alarm;
. Showing test direction ( Push or Pull );
. High precision & resolution, adjustable sampling speed from 15 up to 480Hz;
. Holding and removing the peak value automatically (0 to10sec can be setup );
. In storage 200sets measuring data, and automatic calculate storage data average, max, min value. In storage data pagination browse and check;
. AC power / Re-chargeable battery operation capable;
. Defined period of auto power off without operation;
. Port-in output ( baud rate 9600 ) can print 10 group storage testing data Max, Min, Average value and eligibility or disqualification judgement;
. Capacity: 200N / 20Kg / 44lb;
. Min unit: 0.1N / 0.01kg / 0.02lb;
. Sampling speed: 15Hz to 480Hz;
. Work temperature / Humidity: 0C to 40C, 15 to 80%;
. Power Supply: 110 to 220V AC battery charger or battery operation (Nickel battery 6V/1500mAh );
. Work environment: No vibrancy and corrosion;

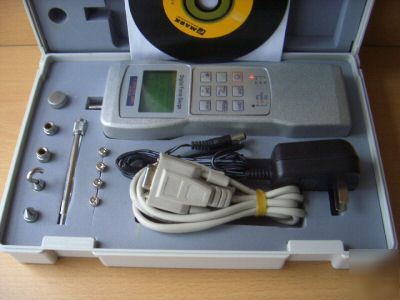

. Accessories: Pull clamps / Push clamp / Prolong stick / Mounting screws / english user manual / Carrying case / 110 to 220V Battery charger / PC software and serial interface cable
We have other models with different load capacity
