62.99" x 62.99" mitsubishi infeeding power rotary table

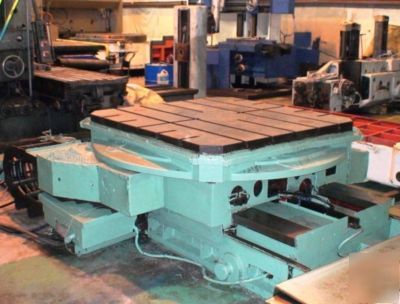

62.99" x 62.99" Mitsubishi Infeeding Power Rotary Table
Table Size ............................ 62.99" x 62.99"
Weight Capacity ....................... 33,000 lbs.
Longitudinal Table Travel ............. 39.37"
Overall Table Height .................. 40"
Table Rotation ........................ +/- 360 Degrees
Rotating Speed, Manual & CNC, ......... 0.0133 to 1.33 RPM
Rotating Speed ........................ Infinately Variable
Feed Rates of Table Infeed, CNC ....... 0.04 to 118 IPM
Feed Rates of Table Infeed, Manual .... 2 to 197 IPM
Longitudinal Infeed Thrust ............ 5,060 Lbs
Weight of Rotary Table ................ 16,280 Lbs
Rapid Traverse ........................ 196.9 IPM
Width of Slideways .................... 7.875"
Number of T-Slots ..................... 5
Table Weight .......................... 25,000 lbs.
Table Rotation Motor .................. 3.8 KW
Table Base Traverse Motor ............. 2.8 KW
Hydrostatic Bearings on Table & Slide
Floor Space: 169"L x 99"W x 40"H
