24" x 101" mazak #M5 cnc lathe #25569

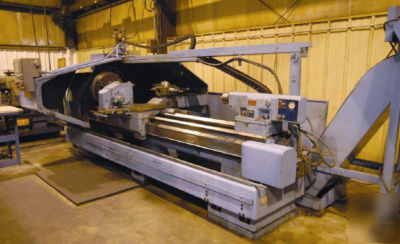

24" x 101" MAZAK #M5 CNC LATHE
New 1979/Retrofit 1997,Serial No 12341, Model M5
Mitsubishi Meldas 50 CNC Control
Tailstock (Hydraulic) - Steady Rest
8-Position Front Turret - 4-Position Rear Turret
Coolant System - Chip Conveyor
Hole thru Spindle........................... 6.5"
Swing Over Bed Ways......................... 24"
Swing Over Cross-Slide...................... 13"
Distance Between Centers.................... 101.5"
Cross Travel (X-Axis)....................... 21.25"
Longitudinal Travel (Z-Axis)................ 101"
Tailstock Spindle Taper..................... #5 MT
Tailstock Spindle Diameter.................. 3.94"
Tailstock Spindle Stroke.................... 5"
Power Rapid Traverse, X-Axis................ 350 IPM
Power Rapid Traverse, Z-Axis................ 400 IPM
Main Drive Motor............................ 30 HP
Weight, Approximately....................... 16390 LBS
PRICE: F.O.B. OUR WAREHOUSE................ $59,500.00
