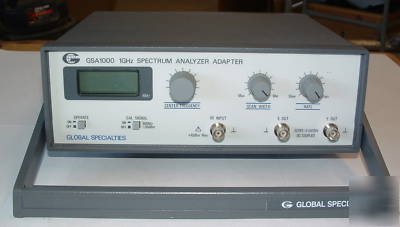

Global speciaties gsa-1000 - 1GIGAHZ spectrum analyzer
The GSA-1000 is in excellent condition and working perfectly. New Price $1497.00
Global Specialties GSA 1000 Spectrum Analyzer
* Converts any oscilloscope into an accurate, cost effective spectrum analyzer
* 400kHz to 1000MHz frequency range
* 250kHz bandwidth, variable scan width & scan speed
* High accuracy (1.5dB typical), built-in calibration marker
* Wide dynamic range, -70dBm to 0 dBm
* Digital readout of center frequency
The GSA 1000 will convert any conventional oscilloscope into a highly cost effective spectrum analyzer. Bandwidth is unimportant and the only requirement is for an X-Y mode.
Despite its low cost the adapter offers excellent performance. The frequency range is 400kHz to 1GHz and the bandwidth (selectivity) is 250kHz. The center frequency can be adjusted over the full frequency range with direct frequency readout on a large liquid crystal display. Both scan width and scan rate are fully adjustable. The amplitude range is -70 to 0dBm and is highly accurate over the whole amplitude and frequency range. A front panel CAL button allows a calibrated -30dBm 50MHz marker signal to be superimposed for precise amplitude and frequency checks.
The adapter connects to an oscilloscope via two BNC cables. The BNC input is true 50 for low VSWR. A low capacitance Hi-Z connection can be made using a standard 10:1 scope probe adjusted for 20dB attenuation.
The GSA 1000 is suitable for many applications within research, development, servicing and education. Application areas include:
Make estimations of spurious emission from equipment, locate sources and quantify the effects of modifications. Examine external interferences sources.
Oscillators and Transmitters:
Check frequency and harmonics, output levels and antenna efficiencies etc.
Receivers and RF Amplifiers:
Check LO?s, mixers, stag gains, bandwidths and alignment.
Demonstrate frequency domain techniques. Illustrate the fourier components of waveforms. Show the effects of mixing and intermodulation.
Make rapid comparisons between good and faulty equipment. Trace RF signals through complete signal paths.
A portable and robust instrument:
The GSA 1000 adapter is compact and fully portable, housed in a robust ABS case with internal shielding.
Frequency Range: 400kHz-1000MHz
Center Frequency Adjust: 0MHz to 1000MHz
Bandwidth: 250kHz(-6dBm typical)
Meter Accuracy: 1% of reading + 1 MHz
Calibration Marker: 50MHz fundamental Harmonics to 1GHz
Frequency Scan Width: 1MHz to 100MHz/div
Amplitude Range: -70dBm to 0dBm nominal
Amplitude Scale: Logarithmic, 10dB/div
Amplitude Linearity: Typically +2dB
Amplitude Flatness: Typically +1.5dB 4MHz to 1000MHz
Calibration marker: -30dBm +1dB at 50MHz
Oscilloscope mode: X-Y mode, DC coupling, bandwidth not critical
Input Voltage: 110/120 Volts at 50/60Hz or 220/240 internally adjustable.
Full operating range: 99-132V or 198-264V
Operating Range: +5 C to +40 C, 20% to 80% RH
Size: 10.2"x7.35"x9.2" (WxLxD) less handle & feet
