Exmark lazer z as zero turn riding mower, 52" deck,28HP

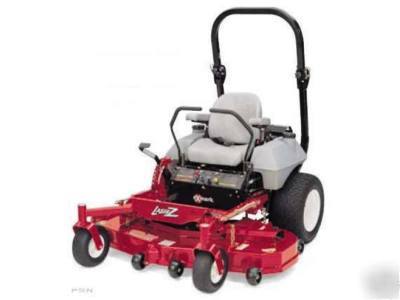

Here is a new 2008 Exmark Lazer Z Advantage Series zero turn riding mower.
52" full-floating Ultra Cut series 4 cutting deck.
64.2 in. (163.1 cm) deflector down
1.5 in. (3.8 cm) - 5 in. (12.7 cm) in 0.25 in. (0.64 cm) increments
Adjustable from operator's seat
Kawasaki V-twin FH770D, 2-cylinder, horizontal crankshaft, air-cooled, 46.6 ci (764 cc)
28 hp (20.9 kW), governed to 3,750 rpm
2 Hydro-Gear 12cc/rev pumps with integral SCR valves, powering twin high-torque Hydro-Gear wheel motors with 1.25 in. (3.2 cm) diameter tapered shafts; shaft mounted cooling fan on one pump
Infinitely variable speed selection from 0 - 9.5 mph (15.3 kmph) forward, 0 - 6.1 mph (9.8 kmph) reverse
Front Caster Tires: 13 x 5.0-6, smooth tread, pneumatic tires
Drive Tires: 23 x 9.50-12, 4-ply Turf Master
Parking: Lever-actuated drum and band integrated with transmission-neutral interlock
Welded, heavy-duty tubular steel
High-back, Elastromeric Vibration Control (EVC) seat, which has no springs; seat adjusts fore and aft with padded armrests
Full-floating UltraCut side-discharge deck
MagStop electromagnetic 200 ft. lbs. clutch
