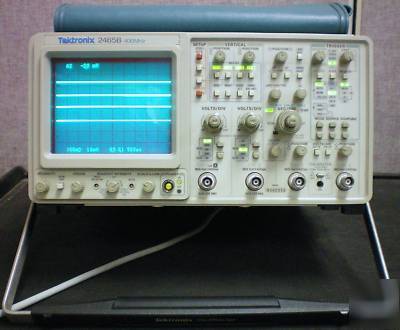

Tektronix 2465B 400 mhz 4-channel oscilloscope
Min. Vertical Sensitivity 2 mV/div
Maximum Vertical Sensitivity 5 V/div
Vertical(or Deflection Factor) Accuracy 2 %
Input Impedance (alternate) 50 Ohm
Maximum Input Voltage 400 V(dc+p
Maximum Input#2 (for Impedance #2) 5 Vrms
Main time base - lowest 5 ns/div
Main time base - highest 500 ms/div
B Sweep Time Base (low) 5 ns/div
B Sweep Time Base (high) 50 ms/div
Time base Magnification factor (X?) x10
Trigger Source External,Internal
Display Size 13 cm Item is used but in good physical condition.
~23.5 Pounds in a box with packaging materials
