> Fluke 199 scopemeter handheld 200MHZ oscilloscope 199B

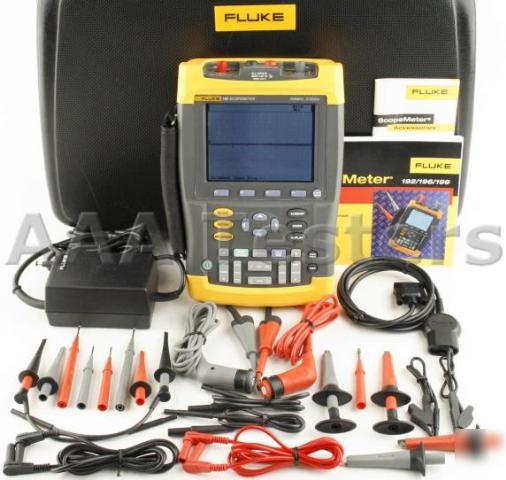

Fluke 199 scopemeter handheld 200MHZ oscilloscope 199B
* Fluke 199 ScopeMeter Oscilloscope
* Fluke VPS190-G 10:1 Voltage Probe Set Gray
* Fluke VPS190-R 10:1 Voltage Probe Set Red
* Fluke AS190-G Accessory Set Grey
* Fluke AS190-R Accessory Set Red
* Fluke TL200 Test Leads (1 Red - 1 Black)
Fluke 199/003 ScopeMeter, 2.5GS/s Dual-Input 200MHz Oscilloscope
ScopeMeter 190 Series : All this power in your hand!
The ScopeMeter 190 Series has specifications you typically only find on high-end bench oscilloscopes. They offer up to 200 MHz bandwidth for capturing high frequency signals, as found in today s state-of-the-art electronics, 2.5 GS/s real-time sampling and advanced memory and triggering functions. They re rugged, compact and battery powered.
* High waveform resolution of 3,000 datapoints per channel (NEW)
* Connect-and-View automatic triggering and a full range of manual trigger modes
* Frequency Spectrum Analysis using FFT (190C) (NEW)
* TrendPlot paperless chart recorder for trend analysis up to 22 days
* Four hours rechargeable Ni-MH battery pack
High sampling rate gives you the required resolution for detailed signal analysis
With a maximum real-time sampling rate of 2.5 GS/s per input, you can see what really happens, with 400 ps resolution. Both inputs have their own digitizer, so you can simultaneously acquire two waveforms and analyze them with the highest resolution and detail. If an anomaly flashes by on the screen, just press the Replay button to see it again. And thanks to the wider screen, you will always see a 12 divisions time-window giving a far better overview of what s happening both before and after the trigger event!
Deeper waveform acquisition memory (NEW)
Thanks to the deeper memory, very small parts of the waveform can be studied in full detail using zoom .
The waveform memory of all oscilloscopes in both the 190B and 190C Series has been enlarged to allow as many as 3000 samples per channel to be acquired. This is 1800 samples more than before, giving much greater waveform resolution. You can use the ZOOM function to find tiny details in a long waveform, for example, the color burst in a video signal or a single impulse in a complex data-stream. All models also allow the high-resolution waveforms to be transferred to a PC for later detailed analysis using FlukeView ScopeMeter software.
Easier identification of traces, everywhere
Color traces and the high contrast display make signal identification easy
The full-color display makes identification of individual waveforms easier, particularly when displaying large amplitude or multiple overlapping waveforms on screen. On-screen color labels, measurements and warnings are clearly linked to specific waveforms. The bright, high contrast display allows for clear reading under varying light conditions. And still a 4 hour battery operation time is assured!
See dynamic signal behavior instantaneously
Digital persistence mode gives analog scope like display of complex and modulated signals
The Digital Persistence uses multiple intensity levels and user selectable decay time -it s as if you re looking at the display of an analog, real time oscilloscope! The fast display update rate that s a standard on all models reveals signal changes instantaneously, useful for instance when making adjustments to a system under test.
Pulse width triggering allows you to find anomalies like missing pulses
Dual-slope triggering used to capture the eyepattern on a digital datastream.
Two new modes n-cycle triggering and dual-slope triggering have been added to the Fluke 190C Series to help you isolate the phenomena of interest. N-cycle triggering ensures you get a stable live image of a signal, for example, in frequency dividers and clocked (synchronous) digital systems, or to synchronize on bursts of pulses. Dual-slope triggering enables the oscilloscopes to trigger on both rising and falling edges alike.
This means that any edge in the signal will act as trigger event and initiate a new waveform acquisition, a most useful capability when making eye-patterns from digital data-streams, or in conjunction with single-shot phenomena.
Automatic capture and replay of 100 screens
Scope users know how frustrating it is to see a one-time anomaly flash by, never to be seen again. Not with the ScopeMeter 190 Series! Now you can look back in time with a touch of the replay button. In normal use, the instrument continuously memorizes the last 100 screens. Each time a new screen is acquired, the oldest is discarded. At any moment you can freeze the last 100 screens and scroll through picture-by-picture or replay as a live animation. Cursors can be used for further analysis. Or you can use the advanced trigger capabilities to capture up to 100 specific events. Two sets of 100 captured screens with individual time stamps can be stored for later recall or download to a PC.
Deep memory for high-resolution ScopeRecord
Use the 27,500 points memory of the ScopeRecord mode and zoom in for maximum detail
Measure from mV to kV fully isolated and safely!
Use Vpwm and measure effective voltage on motor drive and frequency inverter outputs
The ScopeMeter 190 Series have three independently floating isolated inputs. While conventional oscilloscopes can only make measurements referenced to the line power ground, measurements on each of the Fluke ScopeMeter 190 Series inputs can be referenced to a different "low" level. This enables measurements in mixed circuits having different ground references, and also eliminates the risk of accidental ground short circuits. All inputs are safety certified for measurements in 1000 V CAT II and 600 V CAT III environments. And the standard probes cover a wide application range from mV to kV, making the ScopeMeter 190 Series ideal for micro-electronics to electrical power applications.
A wide variety of measurements can be made on either Channel A or B
For analysis of waveforms, ScopeRecord and TrendPlot recordings, the ScopeMeter 190 Series feature 30 automatic measurements, plus cursors, zoom and a real-time clock. The analysis can be made directly or later when back in the office. Up to 2 recordings and 10 scope screens can be stored for analysis, print-out or download to a PC.
Frequency Spectrum Analysis (NEW)
Frequency Spectrum shows an overview of frequencies contained in a signal.
All 190C Color ScopeMeters now include Frequency Spectrum Analysis functionality based on Fast Fourier Transformation (FFT) analysis as a standard feature. This makes it possible for you to identify the individual frequency components contained in a signal. The spectrum analysis function is also handy to reveal the effects of vibration, signal interference or crosstalk. An automatic window function assures optimal windowing, although you may manually select your preferred time window.
Pass/Fail testing of actual signal against a reference template
Waveform reference allows an acquired trace to be stored and designated reference trace for visual comparisons, or it can be used as the reference for automatic Pass / Fail testing (190C). Up to 100 individually matching ( Pass ) or non-matching ( Fail ) waveforms can be stored in the replay memory, allowing you to monitor your system s behavior over a long period of time, without the need for you to attend!
Cursor-limited automatic measurement (NEW)
The rms-value of the noise is measured on the part of the waveform enclosed by the cursors.
Automatic power and Vrms-measurements can now be performed on a specific, user identified portion of the waveform using the cursors of the Fluke 190C to define the time-window of interest. In this way, the Color ScopeMeter can measure the power within a specified time span, or the rms-value of a voltage during a dedicated period of time.
* Variable gain on channel A helps you compare signals on the two inputs. All inputs are safety certified for measurements in 1000 V CAT II and 600 V
* The Vpwm measurement is for measuring the effective RMS output voltage of variable speed motor drives and frequency inverters.
* The high-sensitivity setting of 2 mV/div allows for measurements on low-level signals, that are hard to make with the average oscilloscope.
* Medical applications: For use on Medical Imaging Equipment and on High-Resolution Video systems, an optional instrument configuration is available for the Fluke 190 Series that supports measurement of
Use TrendPlot to help find intermittents, fast
Cursors and zoom help you analyze the captured TrendPlot
The toughest faults to find are those that happen only once in a while: intermittents. They can be caused by bad connections, dust, dirt, corrosion or simply broken wiring or connectors. You may not be around to see it - your Fluke ScopeMeter will. In this "paperless recorder" mode, you can plot the minimum and maximum peak values and average over time - up to 22 days. The two inputs can plot any combination of voltage, current, temperature, frequency and phase - with time and date stamp -to help lead you to the cause of those faults quickly.
FlukeView Software for documenting, archiving and analysis
FlukeView for Windows helps you get more out of your ScopeMeter by:
* Documenting - transfer waveforms, screens and measurement data from the ScopeMeter to a PC. Print or import the data into your report
* Add user text to individual ScopeMeter settings - providing guidance to the operator when recalling a set-up.
* Archiving - create a library of waveforms with your comments for easy reference and comparison. Store complete Replay cycles for analysis of waveform changes. Store complete memory content of the Scop
* Waveform Compare - store reference waveforms on the PC, or send a reference back to the ScopeMeter for waveform comparison and "Pass/Fail" testing.
* Analysis - use cursors, perform spectrum analysis or export data to other analysis programs. ScopeMeter test tools are connected to a PC via an optically-isolated RS-232 interface cable.
Real-time sample rate: 2.5 GS/s
Inputs and digitizers: 2 plus external / DMM input
Independently floating isolated inputs: Up to 1000 V between inputs, references and ground
Timebase range: 5 ns - 2 min/div; 10 ns - 2 min/div (192B)
Input sensitivity: 5 mV-100 V/div
Glitch capture: 50 ns (5 s/div - 1 min/div)
Scope measurements: Cursor: 7; Automatic: 30
Maximum record length: ScopeRecord mode: 27,500 pts per input; Scope mode: 3,000 pts per input
Display: 144 mm full monochrome LCD with fast update rate
