Devlieg microbore tsd tooling systems drill mill


Here it is Ladies and Gentlemen...the MICROBORE !!!!!! Yes that's right - not JUST a bore, but a MICRO one at that!

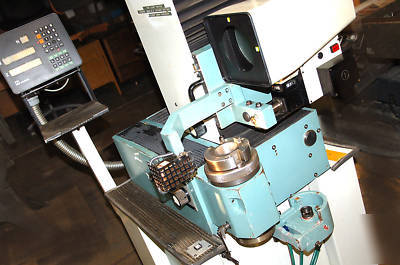

I don't exactly know what this machine does but I am pretty sure that it bores small objects chosen to be bored. And in doing so, the operator of this machine would utilies a optical projector that actually watches the object being machined and then enlarges the image and projects it on a screen so that the operator doesn't put his eye out trying to look so close! (Smart thinking I'd say...)

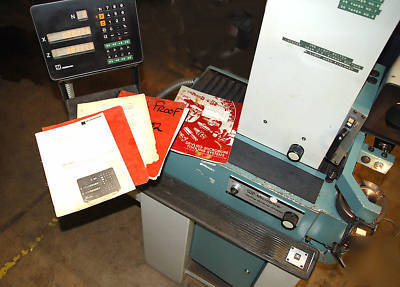

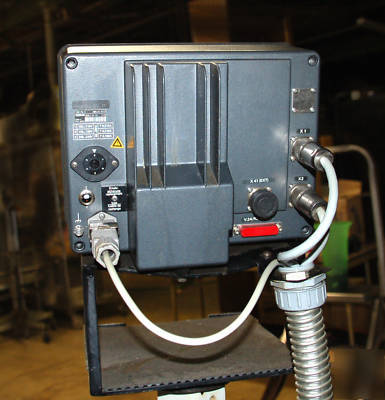

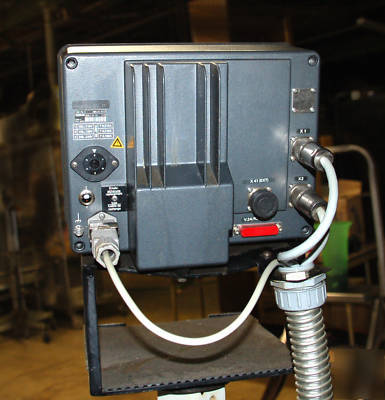

It also comes with a computer:
machine is simply 120-130VAC yet also needs about 40 psi compressed air to operate position locks.
