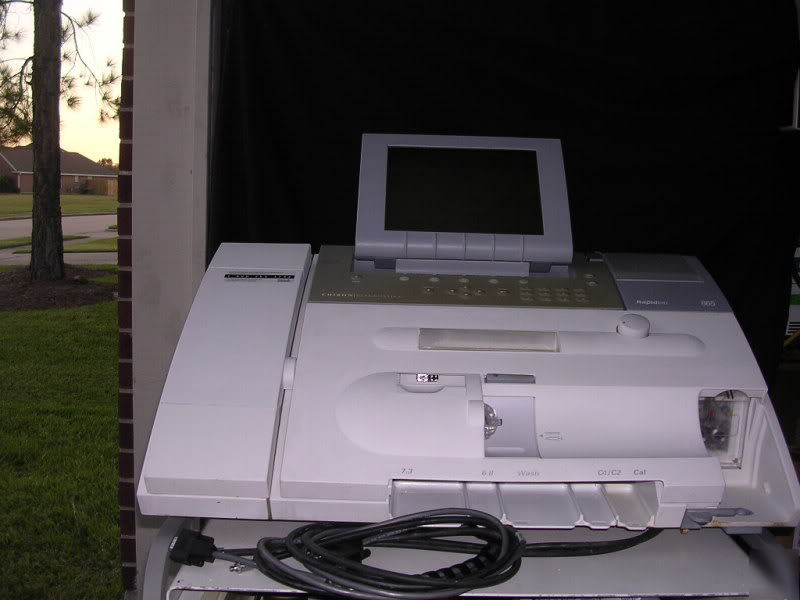

Chiron 865 blood gas analyzer rapidlab
* Automatic calibration at intervals you choose
* Advanced on-board data management
* Archive and backup capabilities
* On-board roll printer with paper take-up spool
This instrument is used for the determination of pH, pCO2, pO2, tHb, Na+, K+, Ca++, Cl-, FO2HB, FHHb, FMetHb, and FCOHb,
glucose, and lactate. Calculated parameters for the 865 include standard or actual bicarbonate (HCO3),
total carbon dioxide (tCO2), base excess of blood [BE(B)] and of extracellular fluid [BE(ecf)],
base excess in vivo or in vitro (BEvv or BEvt), estimated oxygen saturation (O2 sat), estimated oxygen content (O2 CT),
temperature corrected pH, temperature corrected pCO2, temperature corrected O2,
temperature corrected alveolar-arterial oxygen tension difference, temperature corrected arterial-alveolar oxygen tension ration,
temperature corrected respiratory index, Hematocrit, Sulfhemoglobin concentrations greater that 1.5%,
Hemoglobin Oxygen saturation, Oxygen content of hemoglobin, oxygen capacity of hemoglobin, partial pressure of oxygen,
Glucose, and Lactate. The 865 Blood Gas System has fully automated sample delivery, automated sample entry,
easy analysis of sample types and devices with small sample size, easy to use menu-driven software and on-screen prompts.
Software is customizable to meet your laboratory requirements. The 865 offers automatic calibration at intervals that you select,
QC ranges, patient reference ranges, and printing options that you can customize, flags for results that fall outside expected ranges,
and the capacity to store 1500 patient sample reports.
The 865 Blood Gas System also includes all measured parameters for one month s QC data displayed on the screen,
quality control tracking, reduced number of system parts and system complexity, waste system designed for bio-safety,
automatic reagent-path cleaning cycle, advanced on-board data management, archive and backup capabilities,
and on-board roll printer with paper take-up spool. Sample volume is 125 ul and throughput is 100 seconds.
This is an open system which uses sensor technology. Dimensions are 22"w x 19"d x 20"h (56 x 48 x 51 cm).
Features three RS232 interfaces, 1 parallel, LED, and built-in printer. Net weight is 75 lbs.
Gas tanks, regulators, and electrodes are priced separately.
