100PCS smt osram-opto yellow led plcc-2

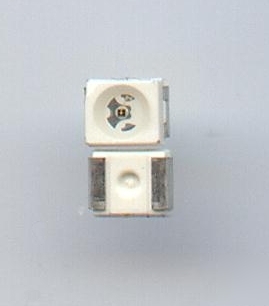

100pcs SMT Osram-Opto Yellow LED PLCC-2
100 pcs Brand new cut tape in antistatic bag
Roughly the same size as a B case tantalum capacitor
package: white P-LCC-2 package, colorless clear resin
feature of the device: extremely wide viewing angle; ideal for backlighting and coupling in light guides
wavelength: 628 nm (super-red), 606 nm (orange), 587 nm (yellow), 570 nm (green), 560 nm (pure green)
viewing angle: Lambertian Emitter (120 )
technology: GaAsP (super-red, orange, yellow, green), GaP (pure green)
optical efficiency: 1.5 lm/W (super-red, orange, yellow), 2.5 lm/W (green), 0.6 lm/W (pure green)
grouping parameter: luminous intensity, wavelength
assembly methods: suitable for all SMT assembly methods
soldering methods: IR reflow soldering and TTW soldering
preconditioning: acc. to JEDEC Level 2
taping: 8 mm tape with 2000/reel, 180 mm or 8000/reel, 330 mm
Luminous Intensity -5.60-7.10 mcd
For more detailed specifications please consult the datasheet
Bank Transfer- UK and European Union members only
Any questions please feel free to ask
