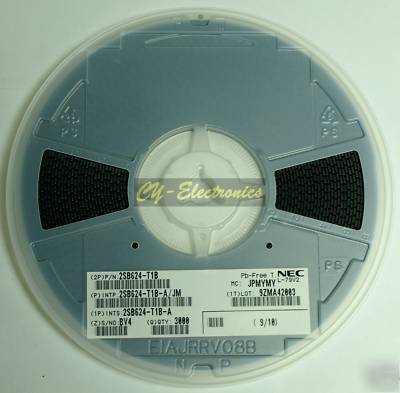

1000 pcs pnp transistor 2SB624-T1B nec
Brand: NEC , SILICON TRANSISTOR
Type: 2SB624-T1B, Audio Frequency Power Amplifier PNP Silicon Epitaxial Transistor Mini Mold
The 2SB624 is designed for use in small type equipment especially recommended for hybrid integrated circuit and other applications. .
High DC current gain. hFE : 200 TYP. (VCE = -1.0 V, IC = -100 Ma)
Complimentary to the NEC 2SD596 NPN Transistor
Maximum Voltages and Current (Ta=25 )
Collector to Base and Voltage VCBO -30 V
Collector to Emitter Voltage VCEO -25 V
Emitter to Base Voltage VEBO -5.0 V
Total Power Dissipation PT 200 mW
Operating Junction Temperature Tj 150
