Tif portable clamp kilowatt hour meter wattmeter KW220

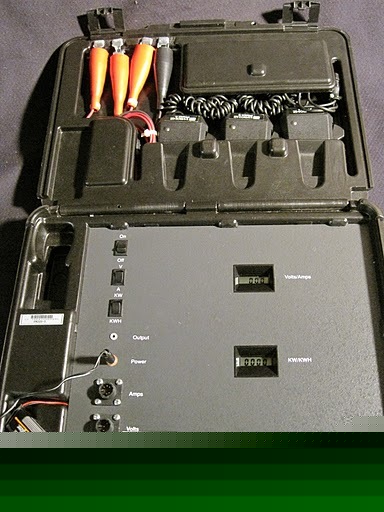

TIF PORTABLE CLAMP KILOWATT HOUR METER WATTMETER CATALOG # KW220-3AV INCLUDES EVERYTHING SHOWN IN PICUTURES PORTABLE CARRYING CASE WITH ALL MANUALS AND CLAMPS SPECIFICATIONS: * INPUT VOLTAGE RANGE: 90 - 530 VOLT * FREQUENCY : 60 Hz NOMINAL 50 Hz NOMINAL INPUT CURRENT: RANGE: 1 - 500 AMP CONT. MAX: 600 AMP INTERMNT. INPUT POWER: RANGE: 200 KW MAX ( AT ANY POWER FACTOR ) / ACCUMULATED 1- 10,000 KWH POWER READOUT: * KILOWATTS: NORMALLY DISPLAYED * KILOWATT HOURS: SELECT FROM FRONT OF PANEL * MAX DISPLAY 200 KW / 10,000 KWH * RESOLUTION: .1 KW * ACCURACY: +/- 2% AT UNITY POWER FACTOR KW OUTPUT: * OUTPUT: 0 - 2.5 VOLTS DC EQUALS 0 - 200 KW INPUT * OUTPUT IMPEDENCE 1000 OHMS INSTRUMENT POWER: * VOLTAGE: 105 - 130 V AC / (E-MODEL ) 210 - 230 VAC * 50 / 60 Hz LIKE NEW CONDITION
