Solenoid valve plus 15MM adaptors [electrical shut-off

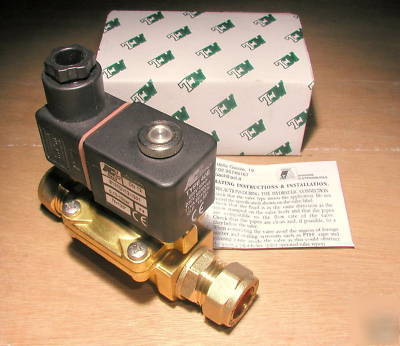

ACL Solenoid Valve with 2 pcs 15mm compression fittings.
Manufacturer Part No: E107DV12 Coil: 40E
Function: 2/2 [2-port] Pilot Operated Normally Closed [opens when coil energized].
Port Size: Standard 1/2" BSP [compatible with male imperial 1/2" fittings and 15mm compression fitting thread].
Orifice Size: 12mm [Almost full-bore. No significant pressure drop or reduction of flow.]
Coil Voltage: 230Vac [operates directly from a mains supply]
I also have 12Vdc coils available for this valve. If you would prefer me to supply the valve for 12v dc operation then please contact me to confirm before purchase. [I may possibly have some 24Vdc coils left but please check first]
IMPORTANT: Valve is pilot operated and requires a MINIMUM 0.15bar differential pressure* in direction of flow - both to maintain a good seal and to open fully. Therefore it cannot be used in applications where this pressure may drop below this required level - eg: tank emptying, pressure venting to atmosphere. *[ The 'differential pressure' is the pressure 'difference' between one port and the other.]
[0.15bar pressure = 2.18PSI 15KPa or approx 1.5m head of water]
* Port size: 1/2" BSP female
* Maximum allowable pressure: 15bar
* Min differential pressure: 0.15bar
* Temperature range [fluid]: +130 C [do not allow water to freeze]
* Temperature range [ambient]: -10 C ~ +55 C [do not allow water to freeze]
* Coil voltage: 230 V ac 50/60Hz
* Coil power rating: 11VA [8va holding]
* Materials [body]: Brass [seal]: VITON
* Length [valve port-to-port]: 59mm
VITON Seals are compatible with a huge range of fluids at a wide range of temperatures. Good compatibility with most petroleum based fuels, alcohol, steam at low pressure etc etc. The following is a link to a compatibilty chart showing VITON performance against different fluid types. http:// /material.htm
For more detailed specifications and any available certifications please look up the valve on the ACL website: [It's type 107 G1/2 normally closed servoassisted]
http:// /default.aspx?id=25&pag=0
Brand new. 1pc with printed instruction leaflet.
NEW item. Less than HALF PRICE. Recommended trade price 70+
