Prince two-way detent valve, model# ls-3010-2

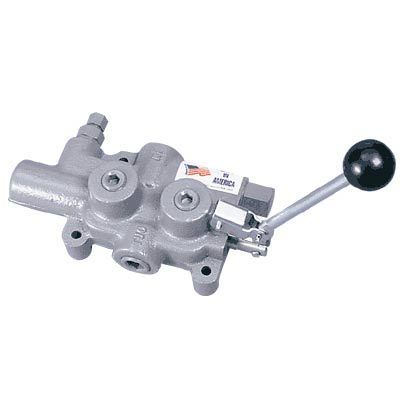

Prince Two-Way Detent Valve, Model# LS-3010-2
For open center systems. Two-way detent; 3/4in. in/out & 3/4in. work ports. Relief valve adjustable to 2750 PSI, preset at 2250 PSI, flow rating up to 25 GPM. Automatically kicks back to neutral when cylinder completes stroke. Built-in relief valve ports. Hydraulic balanced, hard chrome plated spool. Handle can be installed in up or down position. Detent release pressure adjustable from 600 to 2000 PSI. Warning: using a pressure detent in both directions can be dangerous. USA Inlet Port (in.): 3/4, Working Port (in.): 3/4, Max. PSI: 2750, Max. Flow (GPM): 25, Adjustable Release Pressure PSI: 600 - 2,000
