Honeywell Q7750A2003 excel 10 hvac zone manager parts
HONEYWELL Q7750A2003 EXCEL 10 HVAC ZONE MANAGER PARTS
SearchBy9 - 10092 | Location: C76 | By: DAREN | Tester: ROY | Quan: 1 | List: 1 | Duplicate? False | Plan: D
Standard Relist: True | Size: 0x0x0 Weight: 4 | MGR: Cameron | Start: $0.00 | BIN: $29.99 | Type: Fixed Price
Sales: | Business & Industrial:Industrial Supply & MRO:HVAC:HVAC Parts:Controls

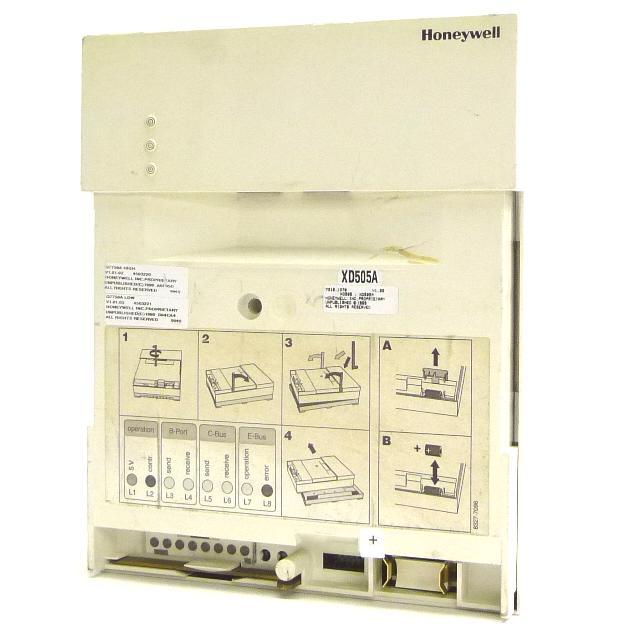

(1) HONEYWELL Q7750A2003 EXCEL 10 ZONE MANAGER
(1) HONEYWELL XD505A EXCEL 10 C-BUS MODULE
Master controller for an Excel 10 subsystem. It provides energy management functions and communication interfaces between EXCEL 5000 System products and the Excel 10 Echelon LONWORKS (E-Bus) network. The Q7750A provides C-Bus (9600 baud and 1M baud) and E-Bus (78k baud)communication interfaces. It also maps user selectable Excel 10 subsystem data points into C-Bus points with a full set of point attributes, including user addresses.
Interfaces Excel 5000 System C-Bus to Excel 10 LonWorks (E-bus) network.
Provides a B-Port connection via a PC for the XI581 Operator Interface (via XI584), Care, and LiveCare.
User access of subsystem data via Care.
Energy management strategies CARE programmable.
Control interaction strategies CARE programmable.
Time Programs CARE programmable.
Alarm reporting for Excel 10 E-Bus network.
Full interaction with other controllers on C-Bus using global data.
Passive bus-wide access on C-Bus
