Home director 10K2216 16X video distribution module vdm

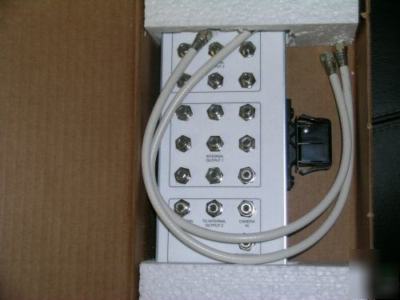

The unit is sectioned off and labeled as (3) different grids of inputs.
The top and middle grids consist of (9) connections that are labeled as "INTERNAL INPUT"
The bottom grid consists of (4) connections. A horizontal row of (3) connections labeled "CAMERA" and then (1) connection directly below labeled "INTERNAL INPUT"
The cables that are included are labeled as
VIDEO BRILLIANCE(R) BY ELDEN - 1694A PRECISION VIDEO CABLE 3GHZ - E108998 1C18 SHIELDED (UL) CMR OR C(UL) CMG 2BA 9974197 FEET
10K2216 16x Internal Video Distribution
