Cincinnati milling machine 10" universal dividing head

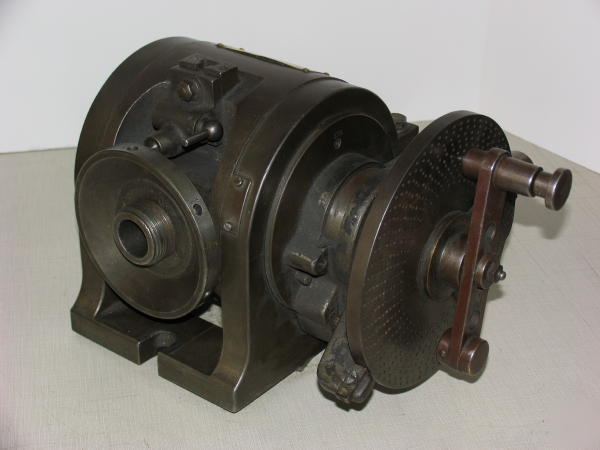

Cincinnati Milling Machine 10" Universal Dividing Head
This operates from the right hand side of the table.
Swing at 0 Degree Tilt: 10-1/2"
Head Tilts: -70 Deg. to +110 Deg.
Internal Spindle Nose Taper: # 3MT
External Spindle Nose Mount: 2" - 8 Threads
Number of Indexes on Plate: 46, 47, 49, 51, 53, 54,
Overall Dimensions: 17" x 13" x 10" High
Front Plate Indexing Attachment
