50 x n type male crimp connector LMR400 RG213 RG8 RG214

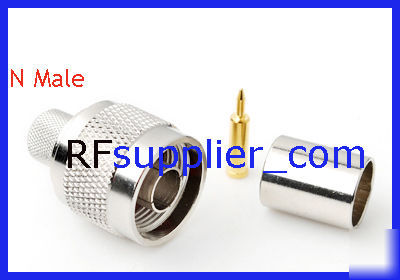

50 pcs N straight crimp plug cable mount for LMR400 RG213 RG8 RG214
Suitable cable: RG213 RG214 RG8 LMR400
Frequency range: DC to 11GHz
.................. 28dB,1-2GHz
.................. 18dB,2-6GHz
Insertion loss: 0.25db,DC-6GHz
Insulation resistance: 5000M
.........................1). Centre contact: 1.0 m
.........................2). Outer conductor: 0.25 m
RF-Leakage: 128 dB up to 1 GHz
(-Limitations are possible due to used cable type-)
Temperature rating: -55 C to 155 C
2002/95/EC (RoHS): Compliant
Coupling nut retention: 450N
Coupling test torque: 1.7 Nm
Recommended torque: 0.7 Nm to 1.1 Nm
Suitable cables: LMR400 RG213 RG11 RG8 KSR400
shell................... brass ....................nickelplated
contact pin.......... brass ....................goldplated
elastic contact..... beryllium................ goldplated
socket.............. beryllium or tin brass ...goldplated
insulator............... PTFE
crimping suite....... copper alloy.......... nicked or goldplated
o-ring sealing ........6146 silastic
