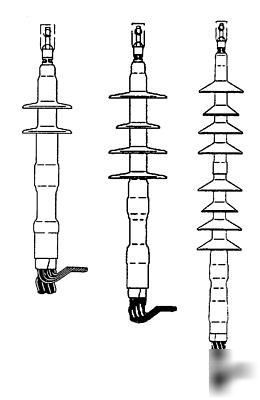

3M cold shrink 2 skirt termination kit 7622-s-2
3M Cold Shrink QT-III Outdoor 2 Skirt Termination 7622-S-2, 0.64-1.08 in (16,3-27,4 mm) Cable Insulation O.D.
This QT-III has a BIL rating of 110 kV suitable for use on 5, 8.7 and 15 kV cables. 3 terminations per kit.
3M Cold Shrink QT-III Outdoor terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. It has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M Cold Shrink QT-III Outdoor terminations deliver maximum performance.
China RoHS - Below MCV - Undetermined
EU RoHS Compliant - Undetermined
Shielding Type - Tape, Wire, Unishield
Termination Type - Three Terminations
For more details on product, go to : http:// and enter the part number(s)
