Wheel dresser sine slide dresser toolmaker/ machinist

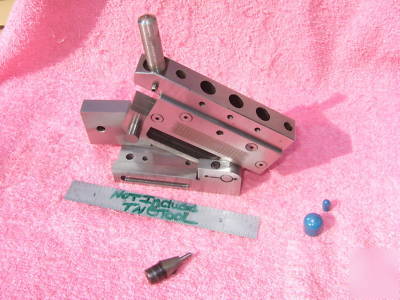

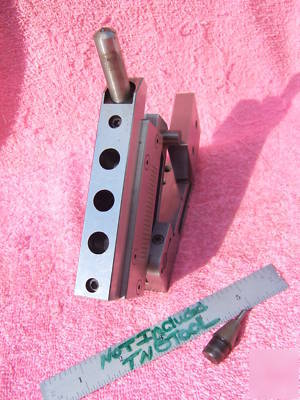

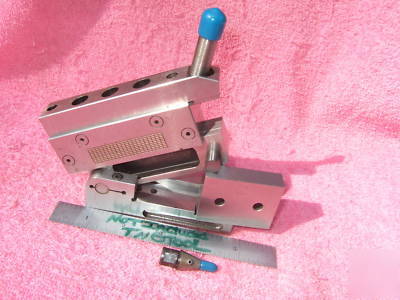

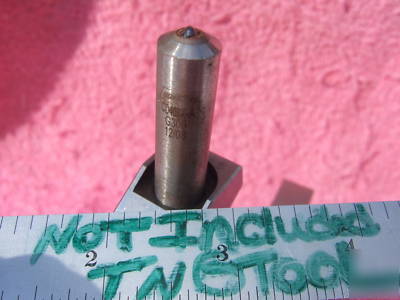

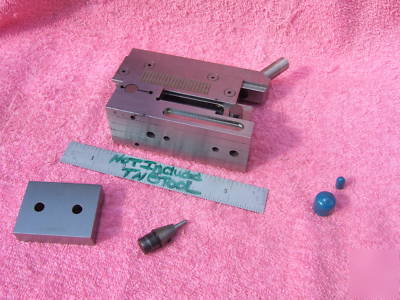

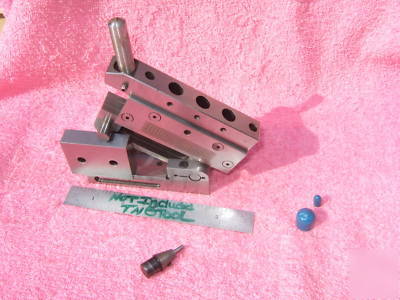

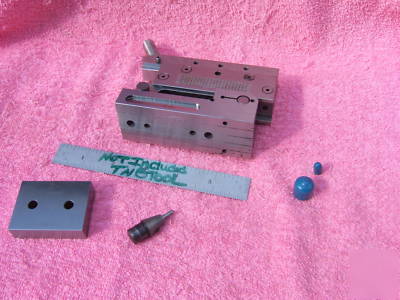

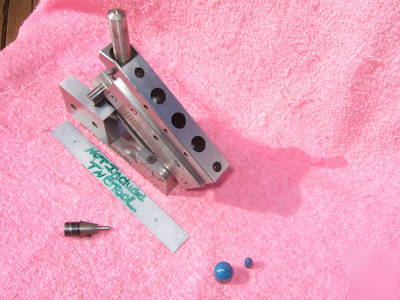

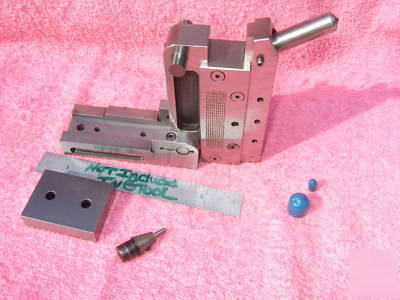

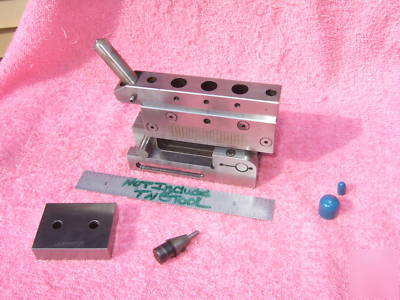

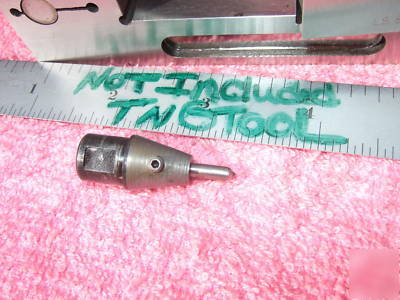

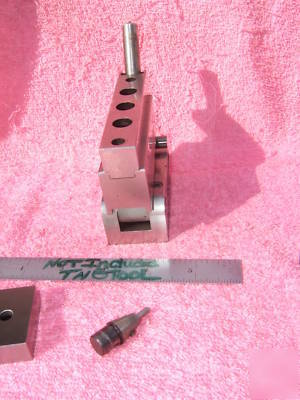

WHEEL DRESSER SINE SLIDE DIAMOND DRESSER ON A 3" CENTER DISTANCE BETWEEN THE ROLLS. AMERICAN "OBERG" TOOLMAKER MADE. COMES WITH NEW (1) 7/16" NORTON CD403X-A SINGLE POINT DIAMOND IN NEW CONDITION. ALSO COMES WITH AN ADAPTOR AS SHOWN TO USE 1/8" DIAMONDS AS SHOWN. AN 1/8" DIAMOND IS INCLUDED. LOCKING DEVICE WORKS VERY WELL TO LOCK THE ANGLE. NO RUST BUT MAYBE SOME LIGHT STAINS ON THIS BEAUTIFULL TOOL!!!!!! COMES WITH (2) TOTAL DIAMONDS BOTH ARE NEW. ONE IS A NORTON CDX403-A AND OTHER IS AN 1/8" PHONO-POINT BY NORTON.
THIS IS USED ON SURFACE GRINDERS WITH MAGNETIC CHUCKS TO DRESS BOTTOMS AND SIDES OF GRINDING WHEELS AT A PRECISEANGLE FOR PRECISE GRINDING APPLICATIONS WHEN USED WITH MAGNETIC CHUCK ON CORRECT MACHINE. BASE (1) MEASURES 1.499" WIDE x 3.997" LONG AND IS 3-1/32" TALL OVER THE SLIDE. SLIDE MOVEMENT IS APPX. 1-1/4" APPX OF TRAVEL ON BOTTOM SLIDE ALONE! MOORE TOOL ALSO OFFERS A SIMILAR UNIT AT $3000 EACH! CHECK MOORE TOOLS WEBSITE FOR A NEARLY IDENTICAL TOOL AND WE HAVE AMERICAN STANDARD TOOL DRESSERS LISTED ALSO IN OUR STORE! SAVE SOME $$ HERE.
