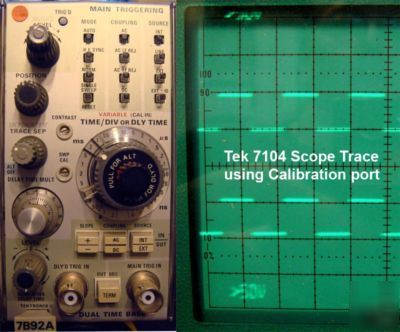

Tektronix 7B92A dual 500MHZ time base plug-in "tested"
Tektronix 7B92A Dual Channel 500 MHz Horizontal (Timebase) Amplifier for 7000 Series Oscilloscopes
The 7B92A Dual Time Base Plug-In provides a 0.5 ns/div to 0.2 s/div calibrated time base. Triggering to 500MHz, alternate display of Intensified Delaying and Delayed Sweeps, and Int/Ext/Ext 10/Line triggering capabilities (main and delay external triggering).
