Odm ttk 120 live fiber trace & tone test set
ODM TTK 120 Live Fiber Trace & Tone Test Set New
Model/Part No:TTK 120 Our Item ID: 6143

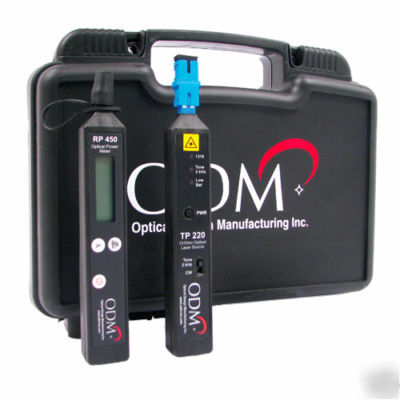

Includes (1) ODM TTK 120 Live Fiber Trace & Tone Test Set as pictured.
ODM TTK 120 Live Fiber Trace & Tone Test Set
The TK 120 Live Fiber Trace and Tone kit provides all of the necessary tools to allow the technician to identify available fibers in the F2 portion of the FTTx network. This trace technique provides identification without the disruption of existing subscribers for purposes of re-route or cutover.
To trace a specific fiber for cutover simply place the TP 220 into the 2kHz modulation mode. At the OLT or ONT connect the TP 220 to the designated fiber for cutover. At the distribution hub place the LFI 110 onto the RP 450. Place the fiber under test into the LFI slot and depress the trigger to look for an active channel or the fiber with 2kHz designated for cutover. When the correct fiber is traced the RP 450 will provide an audible tone identifying the fiber for cutover. The LFI 110 is designed to place a controlled loss onto the fiber to prevent an alarm condition on an active channel.
