Hydraulic offline filtration / transfer trolley 415V
Hydraulic Offline Filtration / Transfer Trolley 415v

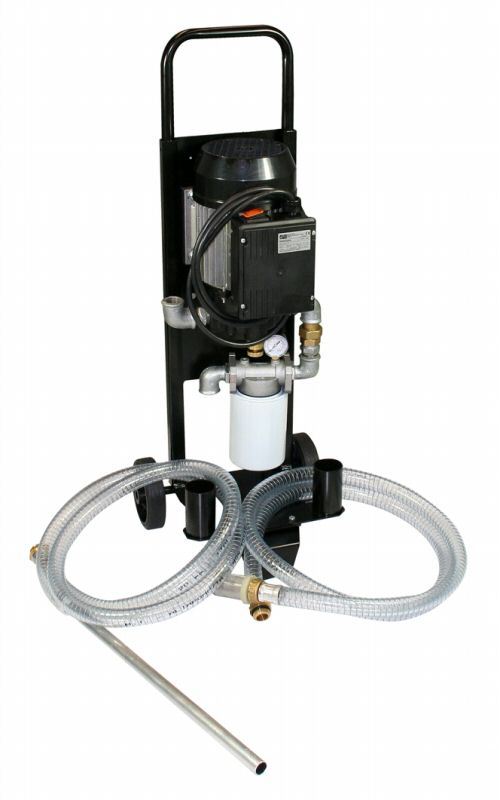

OFFLINE 415 VOLT FILTRATION TROLLEY
The 415 Volt Filtration trolley is the ideal tool for decontaminating oil by removing suspended particles either by flushing or continuous cleaning. It is well suited for prefiltering and transfer of fluids as well as removing water from hydraulic systems (Optional water removal filter required)
Reduces maintenance costs and down time through regular use which extends the life of the oil which ultimately helps the environment as well as costs through improved productivity and reduced oil dispersal.
Wheeled tubular support with anti-corrosion treatment and paint finish for outdoor use.
Easy to use with a powerful electric pump and self-primimg vane pump equipped with a bypass safety system. Self ventilated IP55 induction motor with thermal protection
Interchangeable cartridge filter to allow different elements for filtration of copper, metal and sand complete with manometer to signal filter clogging.
Helically wound transparent suction and output tubing.
Flowrate of 45l/min , 415Volt,
Operating temperature Min -10 degree Celsius to Max 40 degrees Celsius.
Fluid permiited Hydraulic oil, engine oil and diesel.
Fluids not permitted Gasoline, benzin, inflammable liquids with fp < 55 degrees Celsius, water, solvents and liquid food products.
Maximim oil pump capacity of 4 metres @ 30 cSt.
2.5m x 20mm diameter Return line tube, pvc spiral, with a
2m x 20mm diameter suction line tube, pvc spiral, complete with metal wire filter strainer.
Height 660mm, Width 310mm, Depth 400mm,
