Advanced wireless i-rad 1W 2-way uhf radio 450-470MHZ

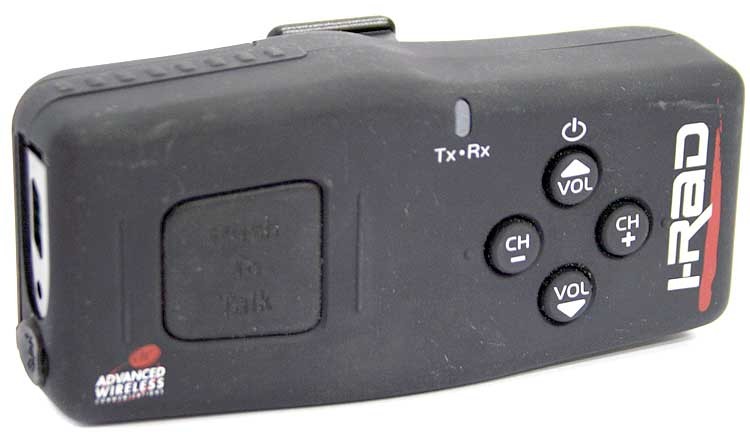

Advanced Wireless I-RAD 1W 2-Way UHF Radio 450-470Mhz
No Charger or other accessories included.
Follow this link to the PDF Datasheet:
http://ecommerce.advancedwireless.com/prodimages/IRAD_black.pdf
NEW! The I-RADTM by Advanced Wireless Communications is a new concept radio that will radically change the way you communicate! All the common failure points have been eliminated. No antenna, no knobs and no LCD. Lightweight and simple, intuitive operation all in a comfort designed housing. This 1-Watt UHF Radio has up to 16 channels, wide and narrow bands. The I-RAD has exceptional audio via Headset or speaker microphone. The headsets connect via a special screw-on connector to eliminate the problem with cord pull-out .
16 Channels (PC Programming)
CTCSS/DCS codes: 38 CTCSS/ 83 DCS
Modulation: FM (Narrow/Wide deviation)
Sensitivity: -119dBM (-6 dBuV emf)
RX Signal to noise ratio: >30 bD
TX RF Output Power: 1W (High) / W (Low)
Battery: 4.2V / 1050mAH Li-Ion Battery
Dimensions (HxWxD) 115x53x29mm (4.5x2.1x1.1 Inch)
Weight (without Battery) 100 Grams (2.5oz)
Clone from one radio to another (Cable Required)
