Veterinary ecg with printer-single channel

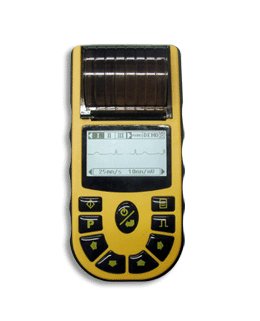

Veterinary ECG with printer-single channel
Excellent ECG with printer for good price.
Input circuit : Floating Calibrating Voltage :1mV 5% Input current :<100nA CMRR :>103dB A/D :12bit Frequency Response: 0.05Hz-150Hz Filter :AC 50/60Hz EMG: 35-4Hz Skin Voltage Tolerance : 300mV Sensitivity Setting 5 10 20mm/mV, conversion deviation 5% Noisy Level : 15Vp-p Safety standard :IEC class I, type CF Lead selection :Automatic and Manual Operation mode :Automatic and Manual Display :LCD 160*96 visual size: 34*60 Recording system :Thermal-array printing DC 7.4 lithium battery Size:190*90*40 Weight: 800g
