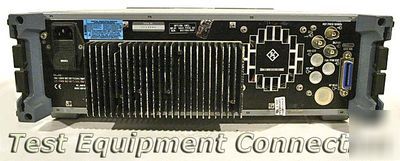

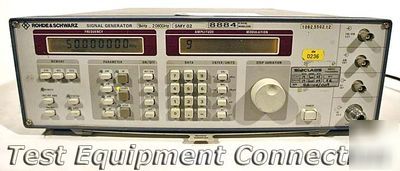

Rohde & schwarz r&s SMY02 /B1/ signal generator
Photobucket The Rohde & Schwarz SMY02 Signal Generator is an excellent cost-effective instrument for testing AM, FM, and phiM receivers and for component measurements. It is designed with a comprehensive set of basic signal generator capabilities. As a result, it's an economical solution for universal use in the lab, production, and servicing environments.
Level range -140 dBm to +13 dBm (19 dBm over range) sufficient even for receivers of highest sensitivity.
High level accuracy and low RF leakage allowing accurate and undergraded sensitivity measurements.
FM DC with high accuracy of carrier frequency for testing pagers and receivers fitted with digital squelches.
Low SSB phase noise and high spurious rejection for all in-channel and blocking measurements.
Low residual FM affording ample margin for S/N measurements.
Modulation generator 1 Hz to 500 kHz for modulation frequency response measurements.
Stereo channel separation of 50 dB and low harmonic distortion for testing FM stereo receivers.
Non-interrupting level setting over a range of 20 dB for reproducible measurement of squelch hysteresis.
Frequency resolution 1 Hz, also suitable for extremely narrowband tests.
FM DC deviation up to 20 MHz for VCO simulation.
FM bandwidth 2 MHz for fast FSK and telemetry applications.
High output level up to 19 dBm for component and overdrive testing.
AF synthesizer 1 Hz to 500 kHz, separate use as AF signal source possible for external applications (e.g., recording of AF frequency response).
GPIB interface for use in automatic test systems.
