Giddings & lewis air-lift rotary table 48X48

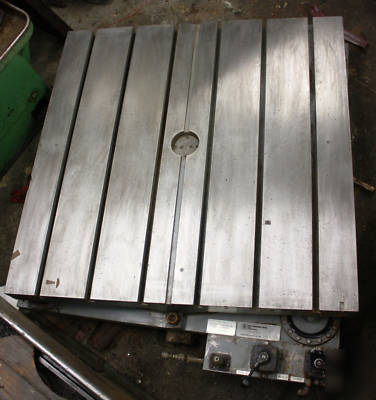

GIDDINGS & LEWIS AIR-LIFT ROTARY TABLE

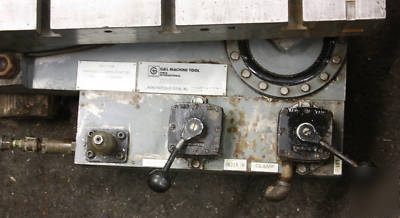

THIS AIR-LIFT TABLE HAS TWO HAND VALVES. ONE IS FOR LIFTING THE TABLE TO FLOAT FOR EASY HAND INDEXING THEN CLAMPING WHEN RELEASED.
THE SECOND IS FOR ACTUATING THE SHOT PIN FOR ACCURACY. THERE ARE ALSO FOUR MANUAL CLAMPS FOR ADDED RIGIDITY.
I CAN LOAD THIS MACHINE, SKIDDED ONTO A FLATBED TRUCK FOR $100.
