Fuji ge inverter motor speed controller frequency drive
FUJI GE INVERTER MOTOR SPEED CONTROLLER FREQUENCY DRIVE

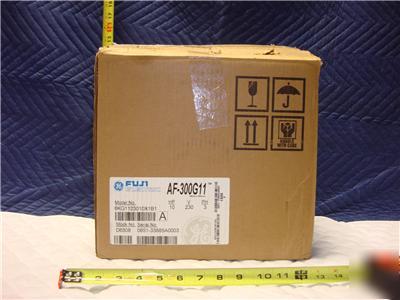

FOR SALE IS A BRAND NEW FUJI GE GENERAL ELECTRIC VARIABLE FREQUENCY DRIVER INVERTER FOR AN ELECTRIC MOTOR SPEED CONTROLLER PART NUMBER AF-300G11 with Model Number 6KG1123010X1B1. THIS UNIT IS BRAND NEW and in PERFECT WORKING ORDER AND IS IN GREAT COSMETIC EXCELLENT AND IS A HEAVY DUTY UNIT. IT IS MADE BY TRUE MACHINE CRAFTSMEN IN JAPAN. IT IS COMPLETE.
THIS LISTS FOR $ 1602.30 for the complete inverter unit.
GE Fuji Drives packaged drive products are rugged, full featured, and easily adaptable to a
variety of applications. They re available when you need them and backed by our highest
standards of engineering support and service.
At GE Fuji Drives, our goal is to produce quality drive products at competitive prices that
The AF-300 G11 Adjustable Frequency Drive with flux vector and dynamic torquevector control
using optimized control of voltage and current vectors provides the enhanced performance that you
are looking for in your application. With quick start-up, reliability, performance, and a user-friendly
diagnostic display, the AF-300 G11 process control systems will make any task simple and
operate in a flux vector control mode. The AF-300 G11 is an AC packaged drive that provides
flexibility across a wide range of constant torque applications while remaining compact in size and
easy to use. Forward and Reverse, Jog and other Simple commands from the local or remote
keypad or from the process control system along with pre-loaded motor parameters and factory
defaults allows for out-of-the-box quick installation.
The AF-300 G11 offers expanded horsepower ratings in both 230 VAC (1/4 to 125 Hp) and 460
VAC (1/2 to 600 Hp) for even greater flexibility.
The AF-300 G11 has an abundant array of beneficial functions for constant torque applications
New standard features includes RS 485 (Modbus RTU) for connection to process controller and
built in PID control are now supported. The new generation IGBT means reduced electrical noise
and less voltage spiking. On-line-tuning provide continuous check for variation of motor
characteristics during running of high-precision speed and torque control. In ratings of 30Hp and
less the AF-300 G11 is designed for side by side installation with zero clearance for optimum use in
space restricted areas. All of this power, versatility and reliability in one compact drive. All drives
conform with the following safety standards: UL, cUL and CE.
Installation Location NEMA 1 and 12: Intended for indoor use only, less then 1000 meters
(3300ft.) elevation, not in contact with corrosive gas, oil mist, dust or direct
NEMA 4: Intended for use indoors or outdoors to protect the enclosed
equipment against splashing water, seepage of water, falling or hose
directed water and severe external condensation. Installation should be
less then 1000 meters (3300ft.) elevation, not in contact with corrosive
gas, oil mist, dust or direct sunlight.
Ambient Temperature - 10 to 50 C (ratings up to 30 Hp requires ventilating covers be removed
Ambient Humidity 5 to 95% (non-condensing)
3mm peak from 2 to 9 Hz, 9.8m/s2 from 9 to 20 Hz, 2m/s2 from 20-55 Hz,
Enclosure Type NEMA 1 standard; NEMA 4 and 12 available
Communication Interface RS485 RTU standard
Input Power System 200-230 and 380-480 VAC +10% to -15%, 50/60 Hz +5% to -5%
Sinusoidal PWM with torque vector control
Frequency Control Range .1 to 400 Hz230 VAC: 3 phase, 200V, 220V, 230V / 60 Hz
460 VAC: 3 phase, 380V, 400V, 415V / 50 Hz, 380V, 440V, 460V / 60 Hz
Carrier Frequency 0.75 to 15 KHz (up to 75 Hp), 0.75 to 10 KHz (100 Hp and above)
Digital setting: +/- 0.01% of max. frequency (@-10 C to 50 C)
Analog setting: +/- 0.2% of max. frequency (@ 25 C +/- 10 C)
Digital setting: 0.01 Hz for frequency up to 99.9 Hz (0.1 Hz for frequency >
Analog setting: 1/3000 of max. frequency
Manual setting code: Constant torque load: 2.0 to 20.0.
0.01 to 3600 sec. independently adjustable, linear, non-linear & S-curve
Frequency activation Hz= >0.1 to 60 Hz, operating time; 0.1 to 30 sec.
Torque Vector Control Optimizes drive operation
Slip compensation, torque limit control, switch from line to inverter, restart
after instantaneous power failure, 3 jump frequencies, bias frequency,
pattern operation & energy saving selection
Momentary Voltage Dip Drive can operate for 15 millisec, with 85% of full load applied.
Frequency Setting Input Potentiometer or voltage input: 0 to 10 VDC, adjusts to 5 VD
Process follower input: 4 to 20 mA DC (external), adjusts to 10 mA
Input Signal (contacts) Forward-Reverse, self-hold selection, 15 preset
speed levels, acceleration/deceleration time selection, coast to stop,
external alarm input & alarm reset input.
2 Relay outputs: Fault alarm, selectable from 34 parameters: SPDT, 250
VAC, .3A Inductive (CE Mark - 48 VDC, .5A)
Current limit, instantaneous overcurrent, torque limit, overload,
overvoltage incoming transients, undervoltage & overheating, short circuit
& ground fault for output, motor & dynamic braking overheating, stall
Output frequency, current, voltage, torque, motor RPM, line speed &
Nine menu selections from DATA SET, DATA CHECK, OPR MNTR, I/O
CHECK, MAINTENANCE, LOAD FCTR, ALM INF, ALM CAUSE, DATA
Two internal option ports, DeviceNet, Interbus S, Modbus Plus, Genius
Interface, Profibus-DP, Relay output, Analog I/O, Digital Tachometer,
Keypad extension cable, Dynamic Braking, AC Line Reactors, PWM
