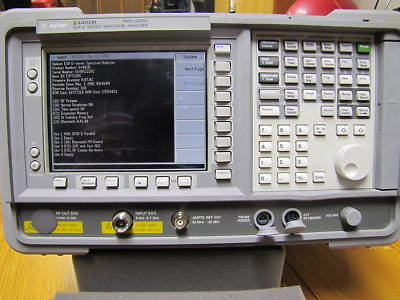

E4402B esa-e series spectrum analyzer - 9KHZ to 3.0GHZ
This is a used item that was last calibrated in Sept. 2009. This unit is in perfect working condition. It is missing the handle but the rest of the unit is in great shape. I have more pictures for those interested available upon request. The options included on this E4402B are as follows:
106, 1D5, 1DR, 1DS, 228, B72, B7D and B7E.
The ESA-E E4402B is a mid-performance spectrum analyzer. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. The flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. The analyzer's selection of one button measurement solutions, combined with its easily navigable user interface and performance in speed, allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.
* Frequency range: 9 kHz to 3.0 GHz
* Resolution bandwidth: 1 kHz to 5 MHz in a 1, 3, 10 sequence; (option 1DR adds 10, 30, 100, and 300 Hz (-3 dB) bandwidths and 200 Hz (-6 dB) EMI bandwidth)
* Displayed average noise level (DANL): (Input terminated, 0 dB attenuation, sample detector) 1 kHz RBW; 30 Hz VBW: <114 dBm; (Option 1DR: 10 Hz RBW; 1 Hz VBW: <133 dBm
* Display range: Log scale 0.1, 0.2, 0.5 dB/division and 1 to 20 dB/division in 1dB steps; ten divisions displayed.
RBW >1 kHz: 0 to -85 dB from reference level is calibrated
RBW <300 Hz (Option 1DR): 0 to -120 dB from reference level is calibrated
* Linear scale: 10 divisions
* Scale units dBm, dBmV, dB V, Volts, dB A, A, and Watts
* Color 13.8-cm VGA TFT active matrix display
* Auto-Selectable 90-132/195-250 Vac; 47-440 Hz operation
* Weight: 34.2 lb; Size: 222 mm (8.75 in)H x 373 mm (14.7 in)W x 409 mm (16.1 in)D
