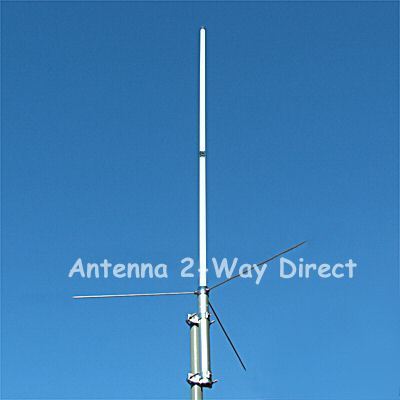

Dual band 2M/70CM 6/8DB base station antenna
DUAL BAND 2M/70cm REPEATER / BASE STATION ANTENNA
* Frequency Range: 144-148 / 430-450Mhz
* Gain: 6.5dB(2M) / 8db(70cm)
* 5/8 wave 2 element 2 Meter / 5/8 wave 4 element 70cm
* 20.5" Stainless Steel Radials
* Fiberglass High Gloss White Outer Shell
* 2 Section Hermetically sealed Radiator and Coil for low SWR in all weather conditions.
* DC grounded construction for static dissipation, maximum lighting protection and low noise ratio.
* Includes Die Cast aluminum mounting hardware.
* Overall length with mount Approx. 100"
* Connection: UHF Female SO-239
