Tecno mbm unica plus, multi edge machine
Purchased in 2006 as a backup machine. Barely used, 100% working condition, its used to do multiple profiles on marble,granite, and stone.

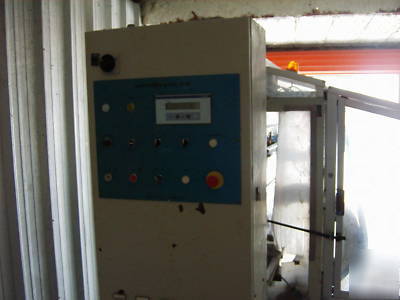

Sturdy metal single block structure- Milled steel worktable with no slip PVC belt covered surface- Pneumatic material locking system with 9 clamps adjustable as desired- One or two pneumatic unit for 130mm diameter diamond or abrasive grinding wheel with 2-3 hp motor- Automatic setting of the unit for the different thickness to work controlled by digital keyboard- 180 degrees unit rotation and locking programmed from the control panels- Mobile carriage for unit on steel round guides and profile wheels- Variable speed control for carriage operated by the inverter- Water cooling system inside the grounding wheel- Electrical system confirm the international safety standard with automatic working cycle managed by the electronic programmer.
Technical Features Overall Dimensions
Max useful workable length: 3600mm Length: 5000mm
Max useful workable width: 180mm Width: 1150mm
Workable thickness: mm. 20mm Height: 1550mm
Workable thickness: max. 100mm Weight: 22000kg
