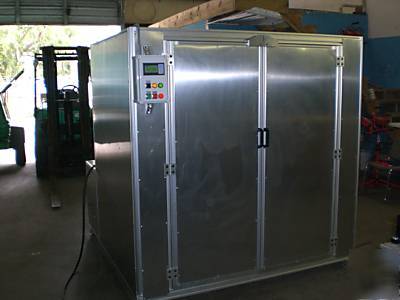

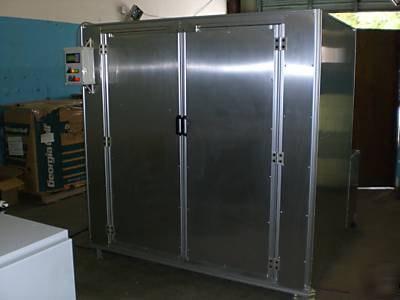

New drying oven thermoforming vacuum forming annealing
INSIDE DRYING SPACE IS 48" X 48" X 72" HEIGHT, OTHER SIZES AVAILABLE ON REQUEST
ALL ALUMINUM FRAMING CONSTRUCTION, PROPERLY INSULATED AND DOUBLE ACCESS DOORS

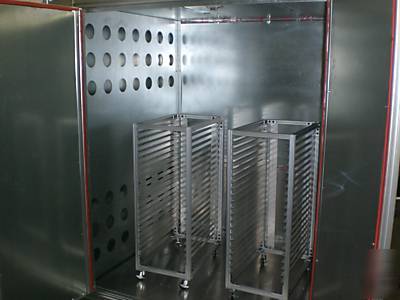

TWO SHEET CART ARE OPTIONAL, SPECIFY SHEET SIZE FOR QUOTE
HOT CIRCULATING AIR IS PROVIDED BY A BELT DRIVEN NEW YORK BLOWER AND FINNED HEATERS
OVEN WILL REACH 200 DEGREES FARENHEIT, POLYCARBONATE DRIES AT 180 DEGREES AND ABS AT 140 DEGREES FARENHEIT
THIS OVENS DO ALSO A GREAT JOB ANNEALING ACRYLIC SHEET

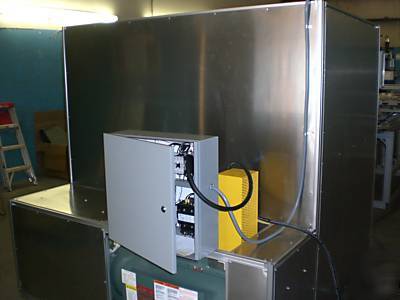

SOLID STATE RELAYS TO CONTROL HEATERS AND AN AUTOMATION DIRECT PLC TP PROVIDE ACCURATE CONTROL OF THE SYSTEM
EASY TO USE OPERATOR INTERFACE
YOU KEY IN THE DESIRED TEMPERATURE AND THE TIME REQUIRED TO RUN
PRESS THE START PUSHBUTTON AND THE BLOWER STARTS AFTER A FACTORY SET TIME HEATERS COME ON
AFTER THE TIME REQUIRED ELAPSES, HEATERS TURN OFF AND THE BLOWER CONTINUES TO RUN FOR A PREDETERMINED TIME TO PREVENT HEATER BURN OUT
AFTER THIS TIME ELAPSES, THE OVEN SHUTS ITSELF AUTOMATICALLY
THE OVEN REQUIRES 30 AMP, 440 VOLT 3 PHASE POWER SUPPLY, OTHER VOLTAGES AVAILABLE
THE OVEN CARRIES A 1 YEAR LIMITED WARRANTY
THIS IS A BUILT TO ORDER SYSTEM , DELIVERY IS 4 WEEKS ARO
WE WILL HELP ARRANGING TRUCKING IF NEEDED AND WILL LOAD ONTO TRUCK
ANOTHER FACTORY FLOOR PROVEN SIBE AUTOMATION SYSTEM
IF YOU NEED FURTHER INFORMATION PLEASE CALL US AT (***)-860-1741
