Dayton 6K354 parallel shaft ac gearmotor 135 rpm

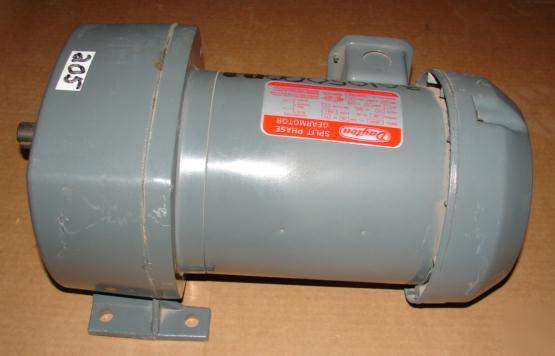

Dayton 6K354 Parallel Shaft AC Gearmotor 135 RPM
Good Condition, Working, Dayton 6K354 Parallel Shaft AC Gearmotor Serial Number
Parallel Shaft AC Gearmotor, Nameplate Speed 135 RPM, Input Power 1/4 HP, Gear Ratio 13:1, Voltage @ 60 Hz 115, Overhung Load 325 Pounds, Rotation Reversible, Full Load Torque 100 Inch Pounds, Full Load Current 4.0 Amps
Shaft OrientationParallel Hz60 GearsHardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9 LubricationPermanent Heavy Gear Oil Input HP1/4 RotationCW/CCW Motor TypeSplit-Phase EnclosureTEFC Full Load Amps4.0 Thermal ProtectionNone Nameplate RPM134 Brake4Z447 Phase1-Ph Voltage Rating115 Gear CaseDie-cast Aluminum MountingAll Position Overhung Load (Lb.)325 Full Load Torque (In.-Lbs.)100 Gear Ratio13:1 Ambient (C)40 SealsLip Type on Input and Output Shaft BearingsHeavy Duty Ball, Needle Roller and Thrust Balls on Case, Ball on Motor
