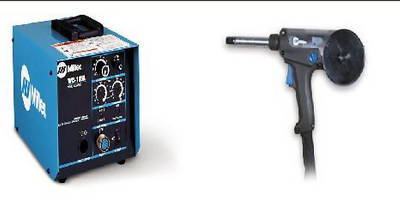

Miller wc-115A control box # 137546011 & spoolmate 200
Miller WC-115A Weld Control W/Contactor
This control unit operates on 115 VAC input power, and is designed for CC/DC power sources. It can also be used with CV power sources or DC engine drives supplying 115 VAC. When used with a CC source, the control circuit functions in a voltage-sensing mode. When used with a CV source, it functions as a constant-speed source. Standard features include a wire run-in control and a drive motor acceleration control which ensure optimum arc starting performance, regardless of the power source being used. The WC-115A comes with a 10 ft. ( 3m ) wall-type plug power cord and a 14-pin contactor cord. A Miller Spoolmate 200, 30A or 15A spoolgun hooks up to this control .
This WC-115 has a contactor so the wire is cold until the trigger is pulled.
This set up works on the Trailblazer , Bobcats and most gas drive welders either a CC or a CV power source
http:// /om/o1078l_mil.pdf
The Spoolmate 200 Series is designed specifically for Home Hobbyist and Light Fabricators . It's the most
Millermatic 212 Autoset, 251 & 252
Direct Connect ( plugs into the 10 pin port)
Need's adapter cable # 195287 ( no remote WFS)
160 A @ 60 % duty cycle( .023-.035 wires) - perfect for home hobbists & light-duty fabrication shops.
Wire Speed adjustments on the gun- makes it easy to quickly change WFS
20 ft heavy duty cable with cable sheath & strain relief
Easy barrell removal- 9 inch extension , heavy -duty & 45 degree barrell are now available
Two-Stage trigger with built-in-gas valve - allows pre-flow & post flow
Still plugs into the 10 pin connections allowing spoolgun & Mig gun to be hooked up simultaneously.
Hinged wire spool cover makes it easy to access wire compartment
Pressure lever for easy loading & unloading of wire
Clear spool cover shows amount of wire left on spool
Heavy duty motor & cast aluminum gearbox
9 inch extension barrell ( 302592)
* MIG (GMAW) with aluminum and other soft alloy wires.
* Millermatic 212 Autoset , 251 & 252
Light and Heavy Industrial Applications:
.023 - .035 in. , steel and stainless steel
http:// /om/o190753h_mil.pdf
