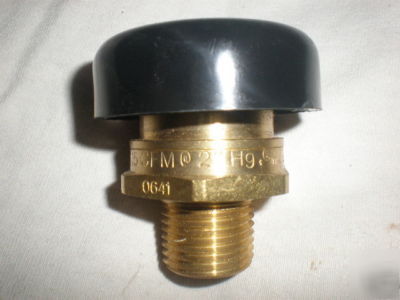

Watts 1/2" brass vacuum relief valve N36-M1 0138457
WATTS ..WATER SERVICE VACUUM RELIEF VALVE..1/2" SIZE.. MODEL N36-M1..SKU# 0138457..A TRADITION OF INNOVATION AND QUALITY.. FOUNDED IN 1874 BY JOSEPH WATTS, WATTS REGULATOR COMPANY MADE ITS REPUTATION BY "SETTING THE STANDARD IN VALVE TECHNOLOGY"..DURING ITS EARLY DAYS, WATTS MANUFACTURED PRESSURE REDUCING VALVES TO REGULATE STEAM AND RELIEF VALVES TO ENSURE SAFE OPERATION OF WATER HEATERS AND BOILERS..TODAY, WATTS REGULATOR IS PART OF THE WATTS WATER TECHNOLOGIES FAMILY WITH OPERATIONS IN NORTH AMERICA, EUROPE AND ASIA. WATTS DESIGNS, MANUFACTURES AND SELLS AN EXTENSIVE LINE OF FLOW CONTROL PRODUCTS FOR THE WATER QUALITY, RESIDENTIAL PLUMBING AND HEATING COMMERCIAL AND OEM MARKETS
* WATER SERVICE VACUUM RELIEF VALVE
* SERIES N36 WATER SERVICE RELIEF VALVES ARE USED IN WATER HEATER/TANK APPLICATIONS TO AUTOMATICALLY ALLOW AIR TO ENTER INTO THE PIPING SYSTEN TO PREVENT VACUUM CONDITIONS THAT COULD SIPHON THE WATER FROM THE SYSTEM AND DAMAGE WATER HEATER/TANK EQUIPMENT
* IT CONSISTS OF A BRASS BODY CONSTRUCTION WITH NPT MALE INLET CONNECTION, AND A PROTECTIVE CAP
* SERIES N36 HAS A LOW PROFILE DESIGN, IS TESTED AND RATED TO ANSI Z21.22, AND IS CSA CERTIFIED
* IT IS SUITABLE FOR LOW PRESSURE STEAM AND WATER SERVICE , AND IS IDEAL FOR USE IN DOMESTIC WATER HEATERS AND SUPPLY TANKS, TABLE TOP HEATERS, JACKETED STEAM KETTLES, UNIT HEATERS, LOW PRESSURE STEAM SYSTEMS, AND STEAM COIL HEATERS
* MAXIMUM WORKING PRESSURE: 200 PSI (14 BAR)
* MAXIMUM STEAM PRESSURE: 15 PSI (103.4 kPa)
* SIZE: 1/2" (15MM) MALE NPT
* SUITABLE FOR LOW PRESSURE STEAM AND WATER SERVICE
* TESTED AND RATED TO ANSI Z21.22
* NOTE: VACUUM RELIEF VALVES ARE NOT DESIGNED OR APPROVED AS BACKSIPHONAGE BACKFLOW PREVENTERS. FOR PROTECTION AGAINST BACKSIPHONAGE INSTALL WATTS SERIES 288A VACUUM BREAKERS
* FOR AUTOMATED VENTING OF A CLOSED SYSTEM TO ATMOSPHERE WHEN A VACUUM IS CREATED. THE WATTS N36-M1 VACUUM RELIEF VALVE PERMITS AIR TO ENTER AND PREVENT VACUUM CONDITIONS THAT COULD SIPHON THE WATER FROM THE SYSTEM, RESULTING IN COLLAPSE OF A TANK OR WATER HEATER OR EQUIPMENT BURN OUT
* MAXIMUM TEMPERATURE: 250*F (121*C)
* THIS ITEM IS ORIGINAL BOX AND WILL BE PACKING WELL TO AVOID DAMAGES
