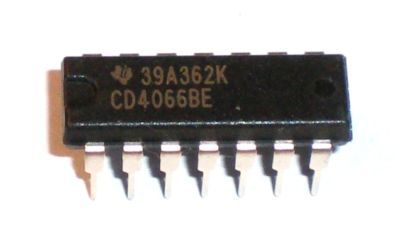

X2 CD4066BE cd 4066 be quad bilateral switch dip-14
A pack of two CD4066BE ICs, each containing 4 switches.
The CD4066BC is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4016BC, but has a much lower ON resistance, and ON resistance is relatively constant over the input-signal range.
* Wide supply voltage range 3V to 15V
* High noise immunity 0.45 VDD (typ.)
* Wide range of digital and +/-7.5 Vpeak analog switching
* ON resistance for 15V operation 80
* Matched ON resistance RON = 5 (typ.) over 15V signal input
* ON resistance flat over peak-to-peak signal range
* High ON / OFF 65 dB (typ.) output voltage ratio @ fis = 10 kHz, RL = 10 k
* ... and more on datasheets.
