Used market forge gas steamer w/ tilt kettle mdl 3500

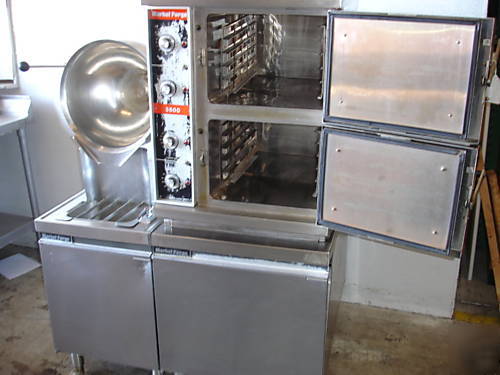

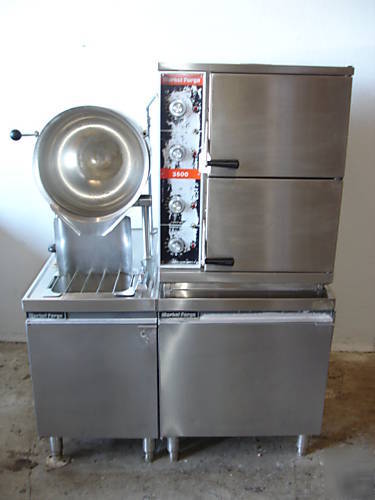

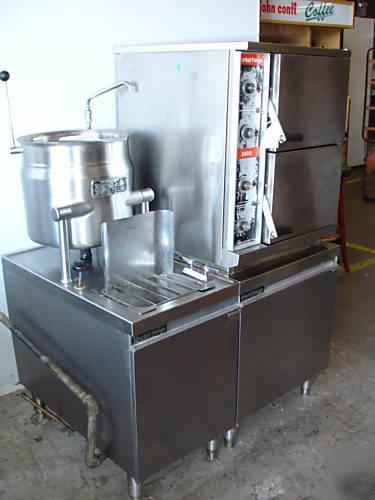

This is a unit of USED MARKET FORGE GAS STEAMER MODEL 3500 (Stock# 10134).
Your specs may slightly differ due to technical improvements, but it should be enough to give you an idea about this particular unit.
MANUFACTURER SPECS FOR THE NEW MODEL.

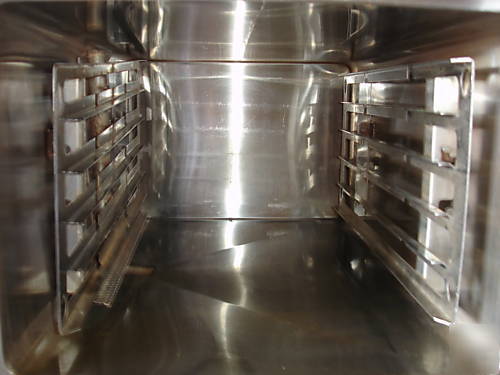

The 3500 will be of double-wall construction with 1" (25mm) thick insulation between cooking compartments and exterior walls, and will have two 18 gauge stainless steel welded cooking compartments with coved internal corners, and a 16 gauge stainless steel front panel.
Each cooking compartment on the 3500 has a positive slam action, field-reversible door constructed of Type 304 stainless steel
Door latches are spring loaded.
The inner door gasket is a one-piece NSF-approved silicone rubber gasket.
The cooking compartment is equipped with a door interlock (switch) that shuts off steam to the cooking compartment when the door is opened.
Each compartment will be equipped with a perforated steam inlet baffle positioned for precise application of high velocity steam across the surface of food.

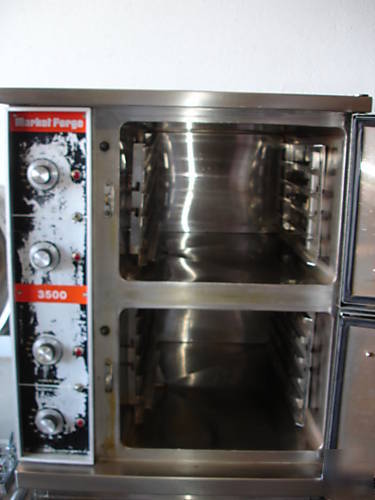

Controls for each compartment will include a 60-minute load compensating timer with constant steam position
a steamer ready indicator light, steam inlet solenoid valve, pressure relief valve, vacuum breaker, an automatic cold water steam condenser system, and a removable drip trough.
Each compartment will be independently and automatically controlled by setting the cooking time on the 60-minute timer.
At the end of cooking time, indicator light will turn off and a continuous signal will sound.
Signal is silenced by returning the timer to the OFF position.
Stainless steel cabinet base will match other Market Forge stainless steel equipment and enclose steam generator.
Base with stainless steel frame will be equipped with 6" (152mm) stainless steel legs and adjustable bullet feet, reinforced stainless steelcounter-top, and hinged door(s) with magnetic latches.
Steam generator will be automatically filled with water and brought to pressure when water and heat switches are turned on and automatically drained under pressure when water and heat switches are turned off.
A cold water condenser will automatically condense all exhausted steam into water before it is released from
the cooker and steam generator drain.
Unit also includes safety valves, low water cut-off, water strainer , cathodic protector, and also includes an access for total concept delimer/descaler, and PM Plus (a corrosion inhibitor).
(The above description is from the manufacturer for a new model and given for comparison only).
