Sis/xlp 500 ft. #12 awg solid copper wire - white

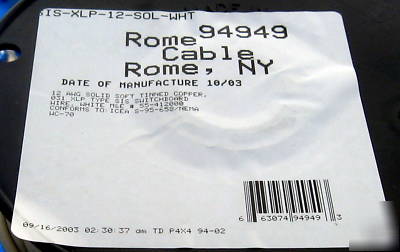

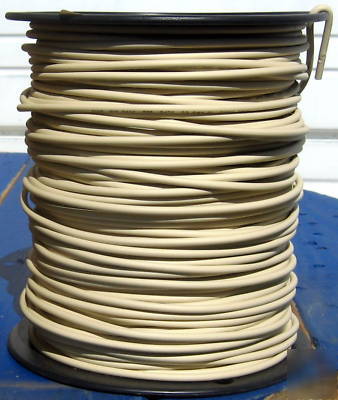

500 feet of #12 AWG SIS/XLP solid soft tinned copper conductor cable with white 31 mil Cross-linked Polyethylene (XLP) insulation, manufactured by the Rome Cable Corporation, rated for 600 volts and a CEC Ampacity of 20.
SIS Wire: Switchboard Wire and SIS Cable
Switchboard Wire is most often referred to in the electrical industry as simply SIS wire. It is also at times called out by electricians and end users as UL3173. SIS wire, although simple in construction, is a very versatile cable used in many different applications. Some of those applications range from its obvious name, switchboard wiring, to panel boards, distribution boards, industrial control panels and many other applications up to 600 volts.
The construction of SIS wire is fairly simple to say the least.. It consists usually of a soft copper conductor that is tin coated with XLP (cross-linked polyethylene) insulation.
Another thing to consider with SIS wire is that it is rated at 90 Celsius as standard.
1.Conforms to ICEA S - 95 - 658 / NEMA WC-70
Construction: Annealed tinned solid copper conductor, XLP insulation, nylon jacket, surface printed.
Approx. Net Weight 25 lb./1000 Ft.
