> Rational CM202 combi oven steamer, full size, electric,

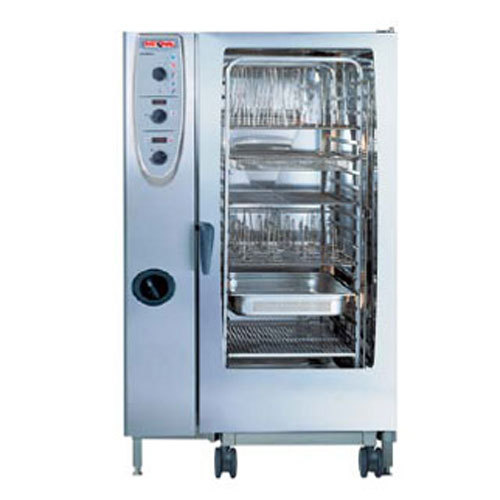

Rational CM202 combi oven steamer, full size, electric,
Combi Oven Steamer, Full Size, Electric, Manual Controls for Steam, Convection and Combi, Mobile Oven Rack Included, (20) 18" x 26" Pans or (40) 12" x 20" Pans, CombiMaster Series
RATIONAL Cooking Systems CM202
CombiMaster, full-size, electric, manual controls for steam, convection & combi, (20) 18"x26" or (40) 12"x20" pan capacity, manual clean, Auto Self-clean steam generator, core temp probe, retractable hand shower, mobile oven rack included, 10 s/s grids, 62kw
* Combi-Steamer for most cooking methods employed in the catering trade, with optional use of steam and hot air, separately, sequentially or combined.
* The RATIONAL CombiMaster unit cooks with hot air and pressureless steam singular, sequentially and in combination.
* Steam generated by the steam generator is available at any time. No parboiling, the cooking process starts immediately. The cooking temperature is permanently set to 212 F.
* Vario-Steaming gentle cooking for sensitive products from 85 F - 212 F.
* Hot Air up to 575 F means sufficient power reserves even with full loads or grillings.
* Combi-Steaming The benefits of steam and hot air are combined. This produces an ideal climate in the cooking cabinet for roasts, gratins,
* Finishing precooked food is perfectly reheated without puddles or dried-up edges, e. g. for banquet-service.
* High-performance fresh steam generator
* Seamless hygienic cooking cabinet with rounded corners, cabinet with splash guard - stops water spilling out
* Microprocessor-controlled cooking process
* Clear control panel, operating modes set by dial
* Temperature unit adjustable in C or F
* Demand-related power supply
* Free time selection from 0-24 hours
* Integral, maintenance-free grease extraction system with no additional
* Airflow optimised cooking cabinet
* Halogen cooking cabinet lighting from shock-proof CERAN glass
* Cool down function for fast cabinet fan cooling
* Hand shower with automatic retracting system
* Automatic vapour quenching system
* Steam generator automatically flushed and drained by pump
* Integral fan impeller brake
* Operating and warning displays
* Rearventilated double glass doors, hinged inside pane for easy
* Cooking cabinet doors with integral sealing mechanism, no steam escape or energy loss when operated without mobile oven rack
* Door handle with slam function
* Proximity door contact switch
* Lengthwise loading for accessories
* Mobile oven rack with tandem steering casters, 2 casters with wheel locks,
* wheel diameter 5 , CNS metal parts
* Maximum rack height 5 1/4 ft. 10 grids 20 x 18 x 26
* Mobile oven rack with locking both sides
* U-shaped rack rails with notched recesses for easy loading
* All-round heat insulation
* Swivel air baffle with quick-release locks
* Hinged control panel allows front servicing and inspection
* ServiceDiagnostic System with service notices display
* Separate solenoid valves for normal and soft water
* Material inside and out CrNi steel CNS 304
* Safety temperature limiter for cooking cabinet and steam generator.
