CREASELINE52 B2 52CM. creasing machine card creaser
Note: listed price includes vat
To view video demonstration of this machine go to /bookleteer select Creaseline range demo

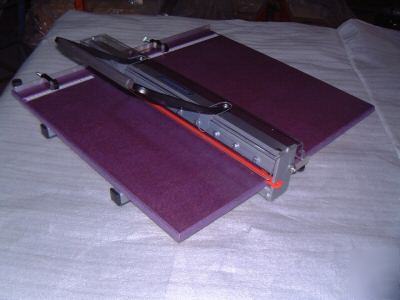

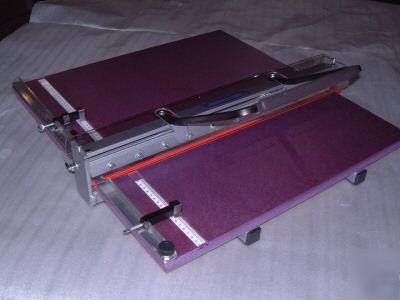

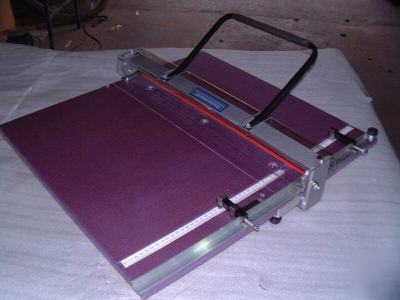

CreaseLine 52 is a B2 (short edge) creasing machine using the industry standard Blade and Matrix method, The only method proven to eliminate cracking on digital stock The ideal creasing/scoring machine for the printer or serious card maker giving a professional finish to your products. Over 1800 similar machines now in use in the UK&Europe Brand new in the box.
Simple hand lever action With padded handle for comfort, two styles of crease to suit thick and thin stock, simply turn over the lower creasing matrix to select the right impression for the card to be creased this feature is only found on CreaseLine/Creasemate machines. Ideal for digital output, greeting cards, menus, Laminated etc.Range of card weight from 160gsm paper to 600+gsm board email or call for sample of creases produced.
Fast set-up with clear shatter-proof polycarbonate cover you see exactly the crease position
Heavy duty welded steel box section frame for rigidity and durability

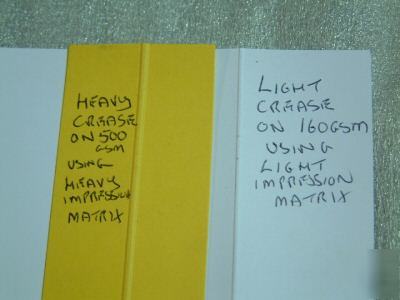

Professional standard Blade (2 point) and matrix creasing method to produce the perfect shallow U shaped crease which will not crack upon bending as a Vee groove design is liable to do.To change crease style simply slide out creasing matrix turn over and reinsert no tools required. See picture below for example of the styles on different stock
Sidelay registration with square adjustment, Metric rule front and back to assist setting. .Dims width 600mm length 600mm Ht 180mm Wt 11 kg.
All machines are hand built in the UK
Q Will the CreaseLine 52 crease/fold laminated work.?
A Yes the blade and matrix method is ideal for this purpose
Q What is special about Blade and matrix as a creasing method?
A Blade and Matrix is a creasing method where a steel(2pt) blade with rounded leading edge is pressed into the card and impesses it into a lower concave forming die strip called the matrix. for different stocks the width of the matrix must receive the blade width + twice the card width. So you will see that a single width of marix would not give satisfactory results on a broad range of stocks.The 2 matrix dimensions used on CreaseLine 52 will give these results
Carriage rate quoted is for UK mainland only extra will be charged for offshore island or Highlands contact me for a price.
