Simple atmel avr isp programmer + avr dip board module

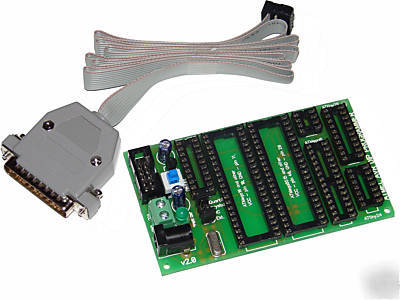

Click for view in large resolution AVR ISP programmer + "AVR DIP Programmer" module
Click for view in large resolution "AVR DIP Programmer board"
Click for view in large resolution Pinout of 10-pin connector on "AVR DIP PROGRAMMER" board
Simple ATMEL AVR ISP programmer with module "AVR DIP Programmer" for programming AVR microcontrollers in DIP case
Module AVR DIP PROGRAMMER is additional extension to AVR ISP programmer. Iit allows programming ATMEL AVR microcontrollers in DIL (DIP) case. "AVR DIP Programmer" can be used with any third party AVR ISP programmer. The module is intended for the developers in which arrangements on a PCB there is no connector ISP, does not remain free pins of the controller for connecting of the ISP interface, or these pins cannot be used on what or other reason. The module supports all ATMEL AVR microcontrollers in DIP case, having ISP interface
1. SMT technology, high quality PCB's with green soldering mask
3. AVR ISP programmer have 1,2m lenght cable
The AVR DIP PROGRAMMER allows to choose type of clocking of the controller (external clocking, external RC circuit or the crystal-stabilized oscillator of 8 MHz), that enables to program any controller irrespective of his FUSE bits. The choice is carried out by adjustment of jumpers on corresponding places. If FUSE bits of your AVR controller programmed for external clock source, you must connect any clock source to pin3 of "AVR DIP Programmer" for working of programming operations.
On a PCB of the module AVR DIP PROGRAMMER there are 2 types of power supply connectors: standard power supply connector with diameter of the central contact electrode 2,1mm (+ a feed on the central contact electrode, - a feed on the external contact electrode) and the terminal-block with 2 pins (polarity of voltage is specified on a PCB). The module AVR DIP PROGRAMMER have the built in voltage stabilizer +5V. A range of input power supply voltage +6V.. +15V
Below list of devices, supported by AVR ISP programmer (in SMT and DIP case). All devices with "L" index also are supported
* YAP - yet another AVR programmer? yes!
