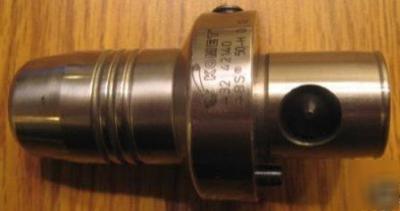

Komet ABS50 x 12MM expanding chuck - hydraulic
This tool features Komet's modular/interchangable ABS tooling system 12mm diameter ABS H expanding chuck A32 42140 for holding drills, reamers, endmills, etc. with 12mm shanks.
* Adapts to all Komet tooling modules with the ABS 50 shank.
* Adapter sleeves can be used to clamp several shank diameters with one expanding chuck. Sleeves are readily available from your local Komet distributor.
As with all tools that I offer, these tools are in very good condition. You will not be disappointed with the quality of these items. Please see my return policy for details.
Features of ABS H Expanding Chucks:
* The ABS H variation is designed for use where greater concentricity is required and is fully compatible with the ABS standard modular program. During the clamping operation ABS H design compensates for play in the connection.
* Maximum long-term concentricity and repeatability of < 0.003 mm (.00012").
* Internal central coolant delivered onto the cutting edge
* Excellent vibration damping for better surfaces - vibrations occurring during the machining process are reduced via the hydraulic system.
* Reduces chipping of tool cutting edge and increases service life of tools - often more than a fourfold increase
* Significant improvement of the workpiece surface quality
* High dimensional accuracy and machining quality on the workpiece
* Rapid tool changing without peripheral equipment - Simply insert the tool into the hydraulic expansion toolholder, then tighten the clamping screw up to the stop using the Allen key done.
* No additional investment or maintenance efforts for components
* No manufacturing down-times caused by failure of peripheral equipment
* Closed system keeps dirt, coolants, lubricants and chips from penetrating
* Maximum ease of use - readily accepts the following tool shanks:
* DIN1835-E (Whistle Notch)
