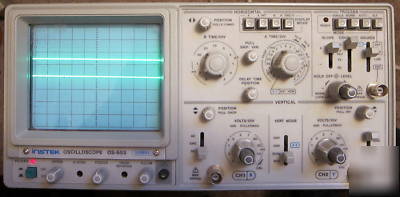

Instek os-653 50MHZ dual trace $399/offers? nice
* NEED TO SELL AS I HAVE A NEW UNIT COMING, OFFERS

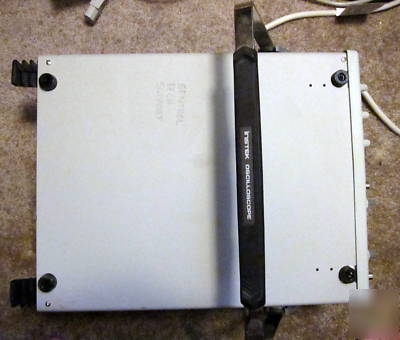

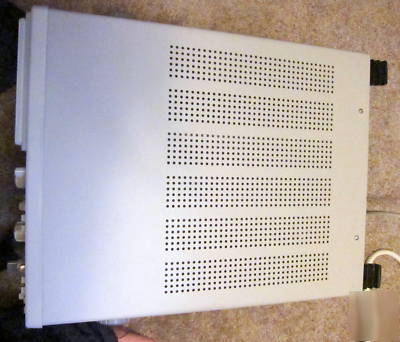

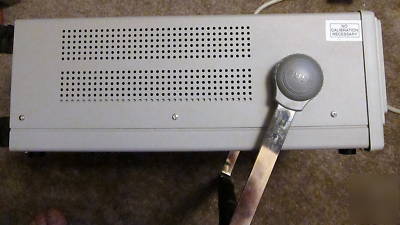

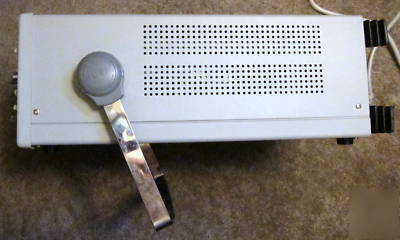

* This unit looks great, would say a 9+/10
* No probes, just the scope, copy of manual (from web) and power cord.
* Search on web shows about $800 for this unit
Model OS-653 50 MHz Oscilloscope Specifications
5 mV ~ 5 V/div 3%, 1 mV ~ 2 mV/div 5%
DC (AC 10Hz) ~ 15 MHz at 1 mV-2 mV/div
7 nS (23.3 nS at 1 ~ 2 mV/div)
Permits viewing leading edge of displayed waveform

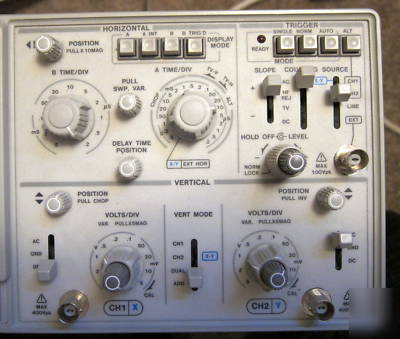

(Dual automatic switching ALT and CHOP)
X10MAG) 10 ns ~ 50 ns/div 8% (X10 MAG)
0.1 s ~ 0.5mS/div 3%, 100 ns ~ 50 s/div 5% (
3 degrees or less at DC ~ 100 KHz

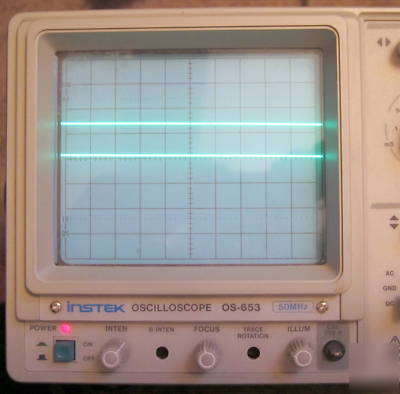

6-inch. rectangular with internal graticule
Approx. 12 kV accelerating potential, 8
X 10 div display area (1 div =

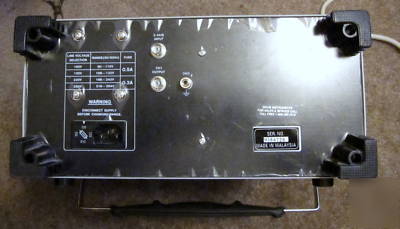

AC 100 V/120 V/220 V/230 V 10%, 50/60Hz, Approx. 70VA (max.)
310 (W) X 150 (H) X 455 (D) mm
