Comet 2S, 2V, 3V, 3KV, 2KS milling machine parts manual

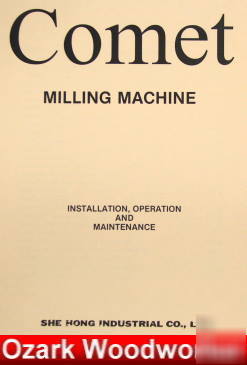

This is a reproduction, not a photocopy, of an original Comet Milling Machine Operation and Parts Manual this manual covers the 2S, 2V, 3V, 3KV & 2KS. This manual contains general safety instructions, operation instructions, adjustments, maintenance, lubrication, and cross section parts diagrams with descriptions. See index below.
Dimensional Drawing For Model 2S, 2V & 3V Turret Miller..............1
Dimensional Drawing For Model 3KV & 2KS Turret Miller................2
Long and Cross Feed Assembly.........................................3
Uncrating............................................................4
Shortages............................................................4
Cleaning.............................................................4
Placing on Solid Foundation..........................................4
Leveling Machines....................................................4
Mounting Head on Overarm Adapter.....................................5
Handles..............................................................5
Inspection...........................................................5
Alignment of Head....................................................5
Lubrication..........................................................6
Lubrication Drawing..................................................6
Adjustment of Table Gib..............................................7
Adjustment of Saddle and Knee Gibs...................................7
Clamping Table, Saddle and Knee......................................8
Removing of Table ...................................................8
Removing of Saddle...................................................8
Mounting Motor on Attachment.........................................9
Placing and Adjusting Belts..........................................9
Machine is Ready to Operate..........................................9
Operating Instruction.............................................9-12
Parts list and Drawing For Basic Machine Assembly................13&14
Parts list and Drawing For 2S or 2KS Head Assembly...............15&16
Drawing and Parts List on "2V" Attachments.......................17&18
Drawing and Parts List on "3V" Attachments......................19&20
Drawing and Parts List on "3KV" Attachments......................21&22
